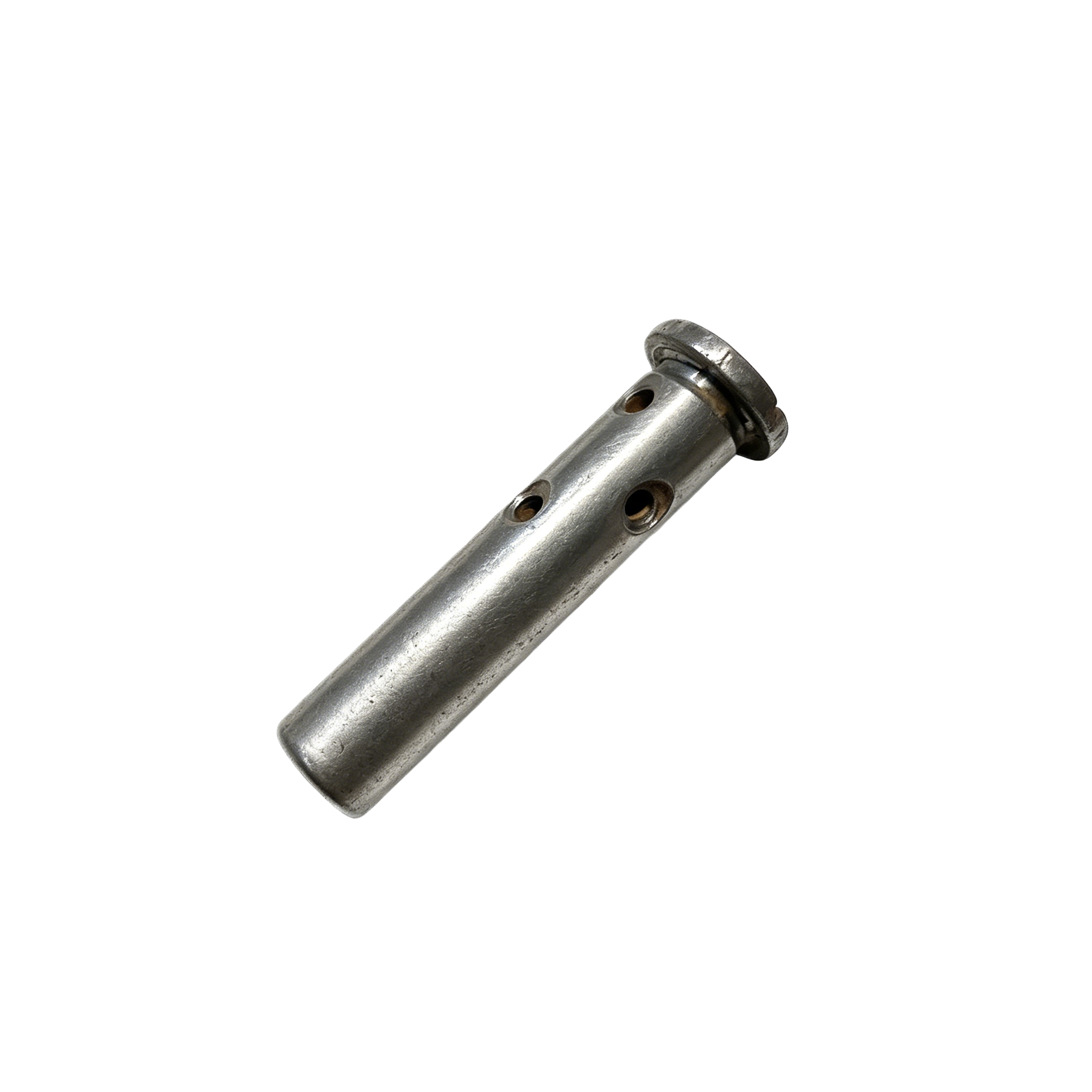

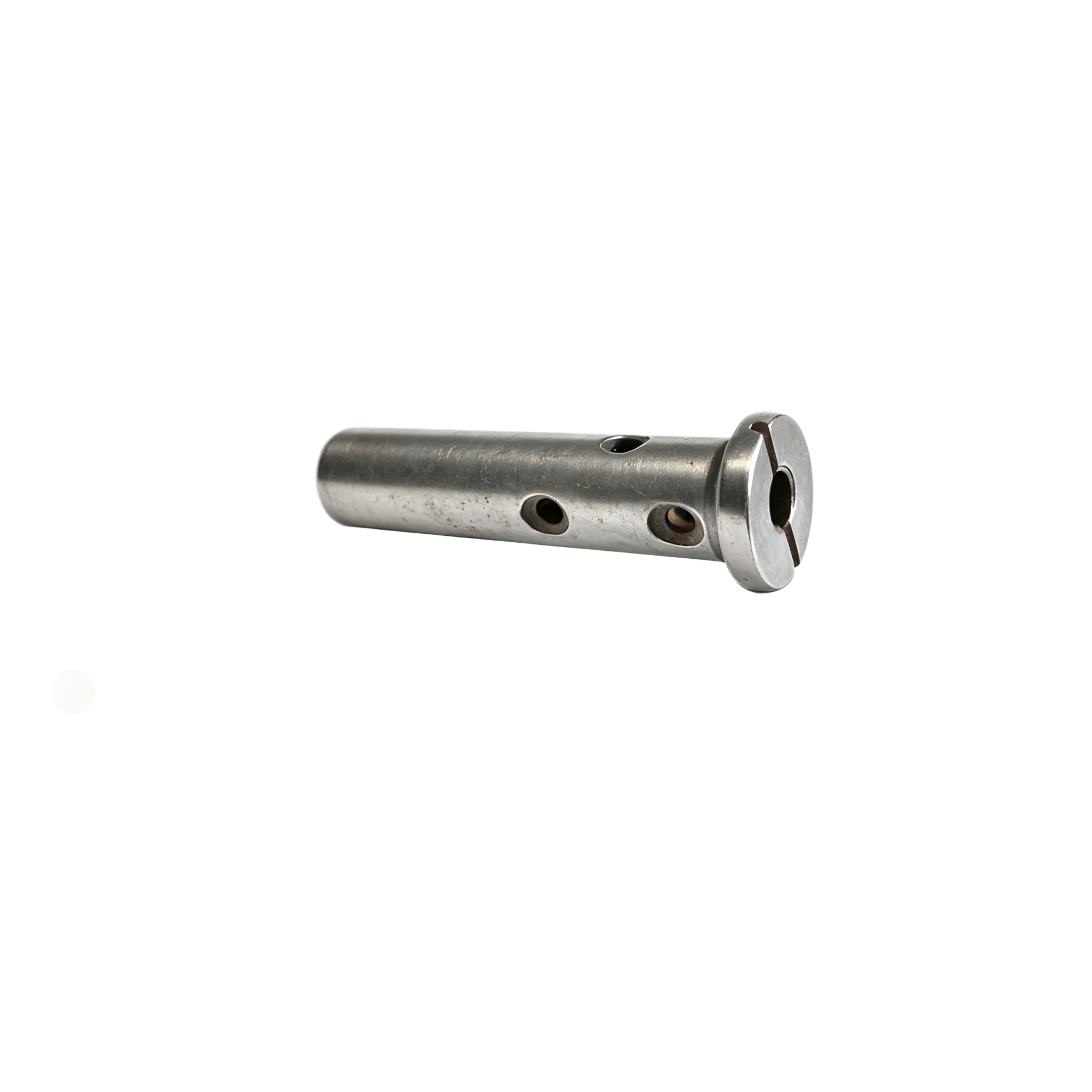

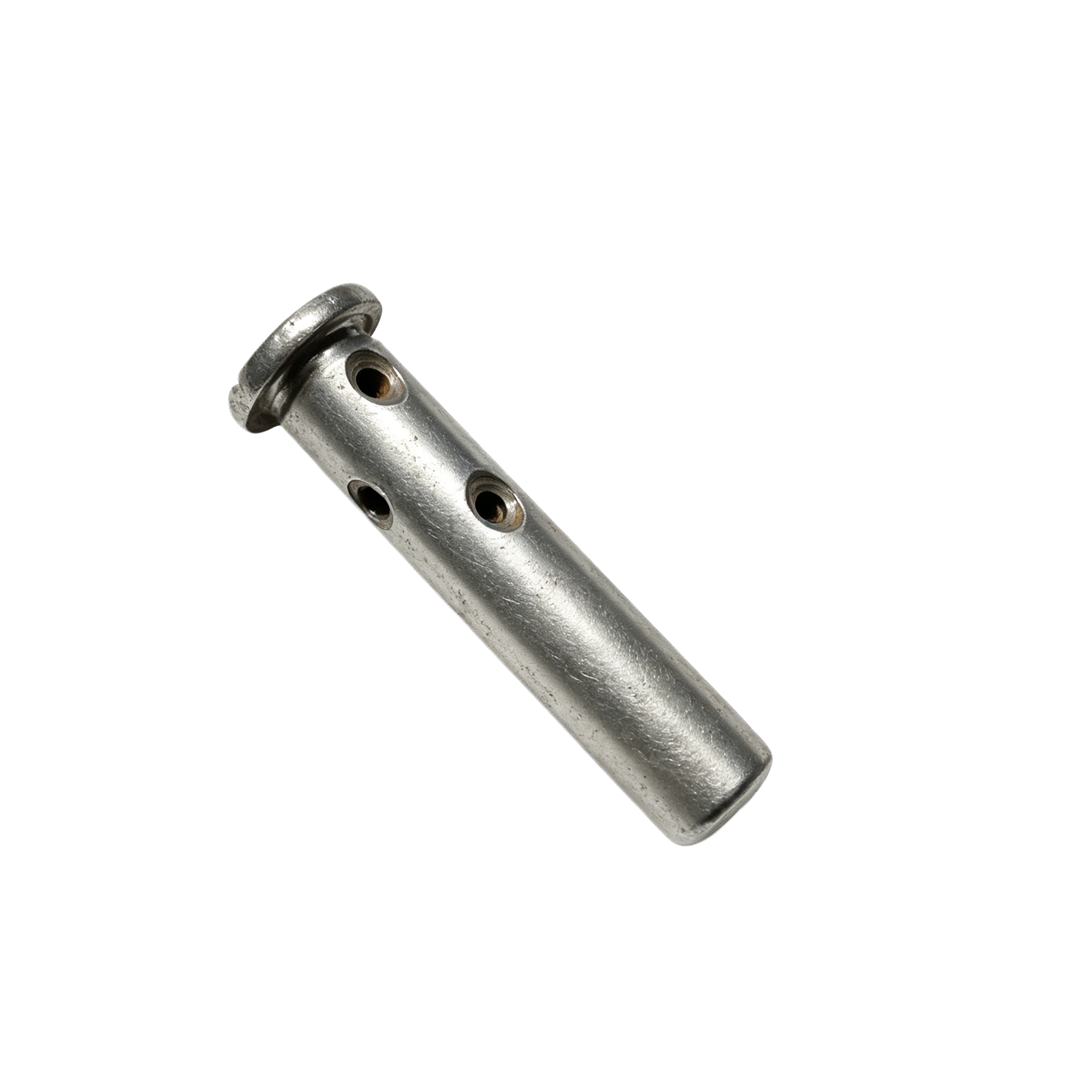

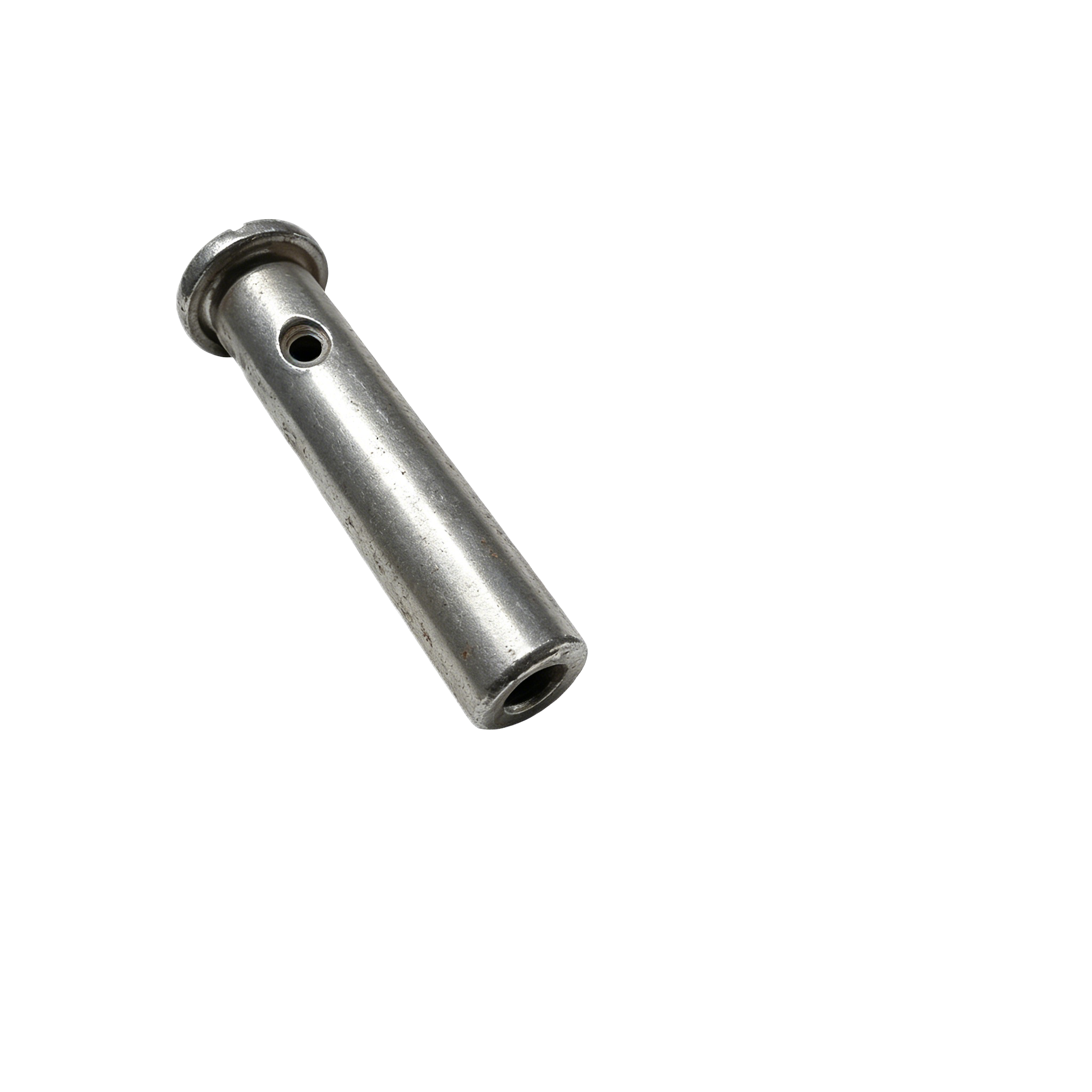

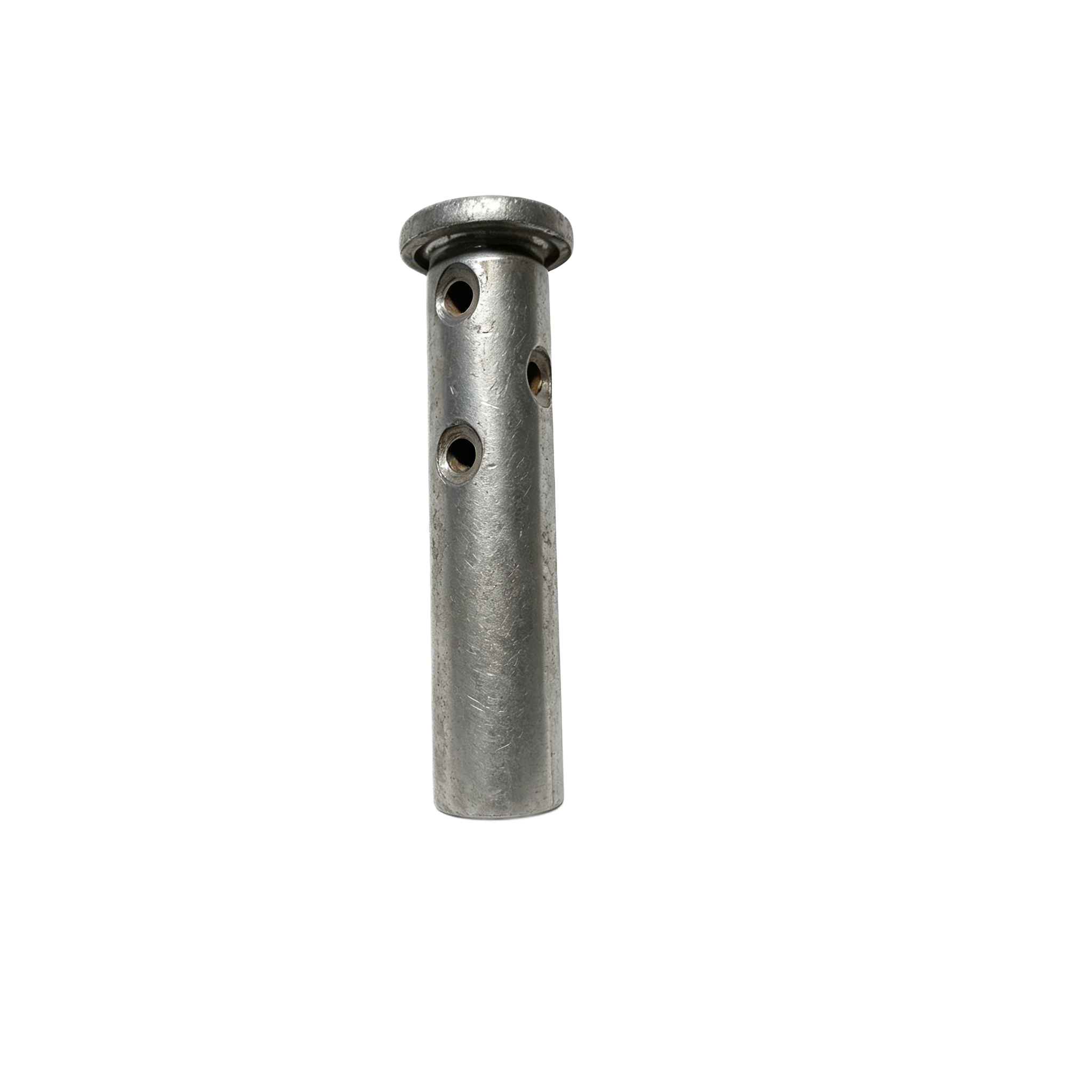

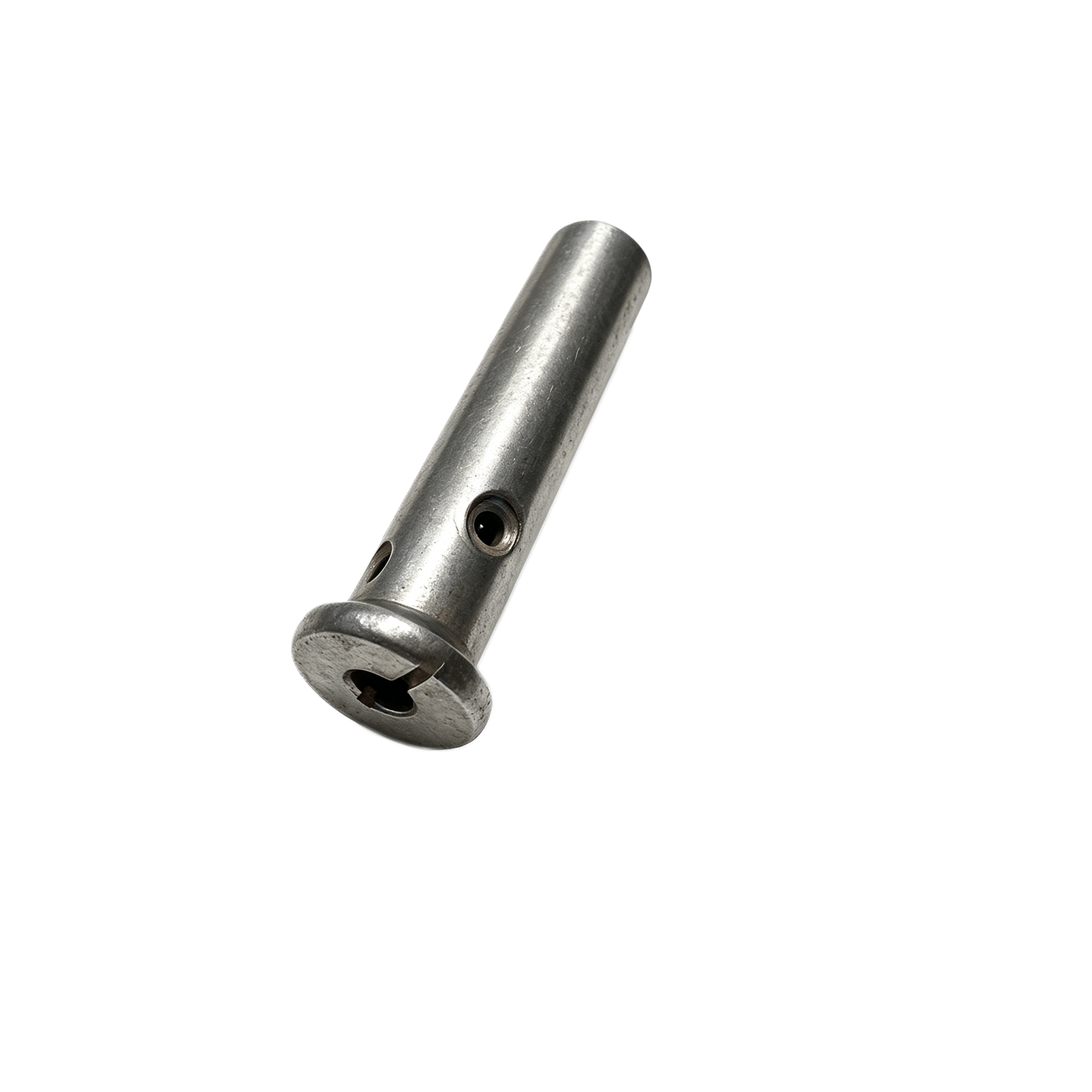

Clevis Pin Slotted Flanged Head Multi-Hole Steel Pivot Pin for Machinery & Agricultural Joints

Product Introduction :

This Clevis Pin Slotted Flanged Head Multi-Hole Steel Pivot Pin from Qimao Metal Manufacturer for Machinery & Agricultural Joints is basically a pivot pin with some smart details. The head is flanged, so it sits flat on the bracket and won’t pull through. There is a slot on the head for cotter pin or wire lock, so the pin stays in place even under vibration. The shank has several holes, that means you can choose different effective length for different joint width. One pin can fit more than one application. We make it with tight tolerance, so it rotates smooth and doesn’t wobble. The surface finish also matters — zinc plating for normal outdoor use, black oxide for indoor machinery, stainless for wet or corrosive environment. You can tell us your working condition, we will suggest the right version. Suitable for repeated assembly and disassembly, and easy to replace when worn.

Key Specs & Dimensions:

Product Function:

The Clevis Pin Slotted Flanged Head Multi-Hole Steel Pivot Pin for Machinery & Agricultural Joints main job of this pin is to connect two parts and let them pivot. The flanged head works as a stop, so pin won’t go too far in. The slot on head is for cotter pin or wire lock, this is important for vibration condition. The multi-hole shank gives you adjustment — you can move the locking hole to get the right length. So the joint stays tight but still can rotate. No special tool needed for install or remove. This pin is reusable, so maintenance cost is lower compared to one-time fasteners. Also, because the pin can be repositioned, you don’t need to keep many different lengths in stock. One size covers several joint widths, which helps both production and after-sales service.

Key Features:

• The Clevis Pin Slotted Flanged Head Multi-Hole Steel Pivot Pin for Machinery & Agricultural Joints flanged head sits flat on the bracket, so the pin won’t pull through even under heavy load.

• Slotted head takes a cotter pin or wire lock — this is what keeps the pin from walking out when the machine vibrates.

• Multi-hole shank lets you adjust the effective length. One pin can fit different joint widths, so you don’t need to stock too many sizes.

• We make it from carbon steel, alloy steel, or 304/316 stainless. Which one to use depends on your working environment.

• Tolerance is controlled tight, so the pin rotates smooth but doesn’t wobble in the hole.

• Zinc plating for normal outdoor use, black oxide for dry indoor machinery, stainless for wet or corrosive conditions.

• Reusable design — you can take it out and put it back many times, no need to replace every time you service the joint.

• Custom sizes and materials available. Send us your drawing or sample, we can match it.

Use Cases:

• The Clevis Pin Slotted Flanged Head Multi-Hole Steel Pivot Pin for Machinery & Agricultural Joints used for tractor three-point hitch — this is one of the most common uses. Category 1 and 2 hitch systems need a pin that can take vibration and still be easy to remove when changing implements.

• Implement linkage — plows, seeders, harvesters all use clevis pins at the pivot points. The multi-hole shank helps when the joint width is different between models.

• Loader arms and bucket joints — here the pin takes heavy load and constant movement. Flanged head keeps it seated, cotter pin keeps it locked.

• Trailer couplings and towing eyes — the pin needs to be strong and easy to pull out by hand. Our flanged head gives a good grip for that.

• Hydraulic cylinder rod ends — the pin connects the rod end to the bracket. Smooth rotation matters here, so tolerance is important.

• Construction equipment — excavator bucket linkages, conveyor systems, lifting gear. Dust and vibration are normal, so the locking slot is a must.

• Marine and offshore use — if working near water or in chemical area, choose 316 stainless. It won’t rust like carbon steel.

• Industrial fixtures and automation — where the joint needs repeatable positioning. Multi-hole design lets you set the same length every time.
