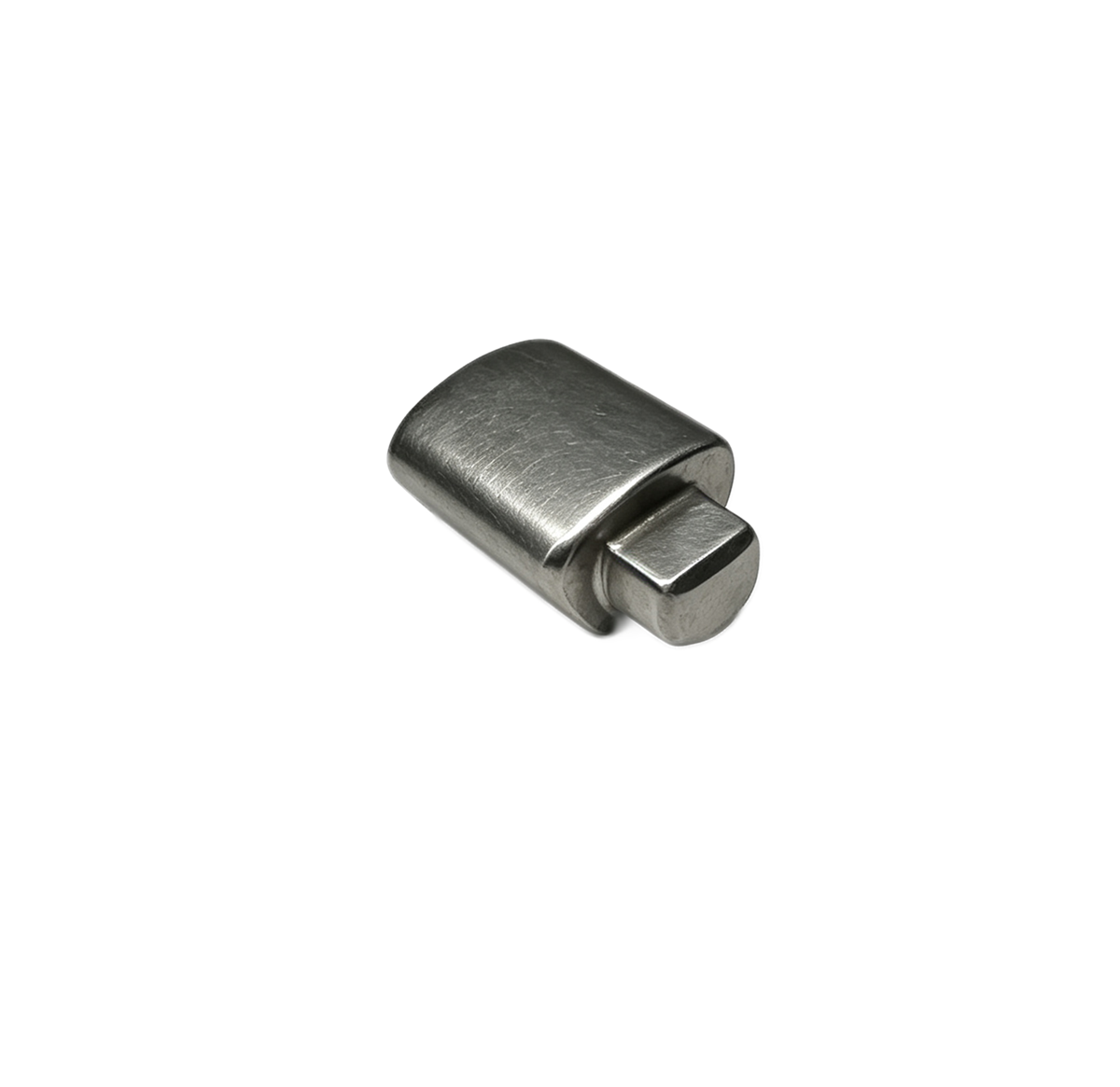

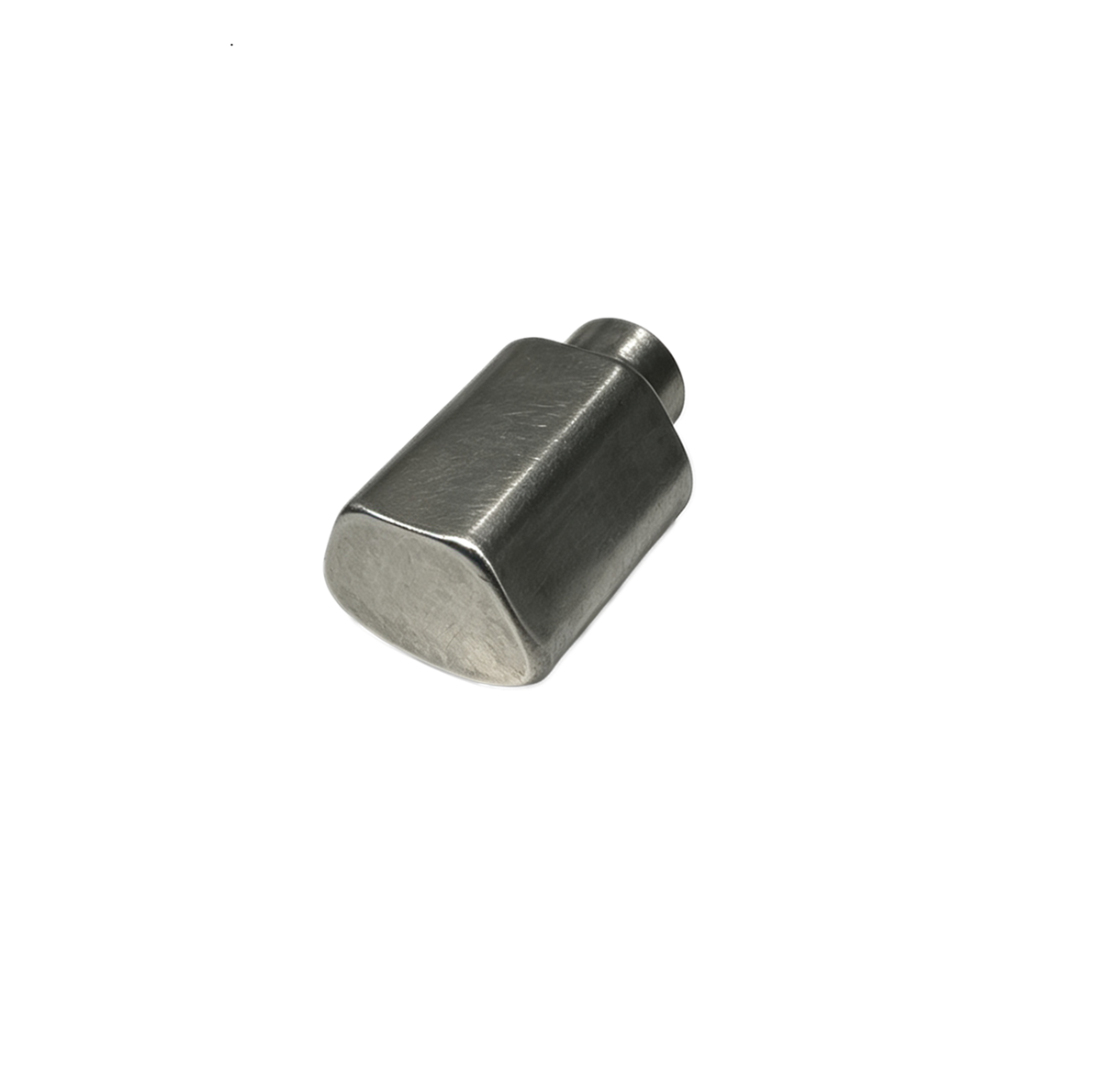

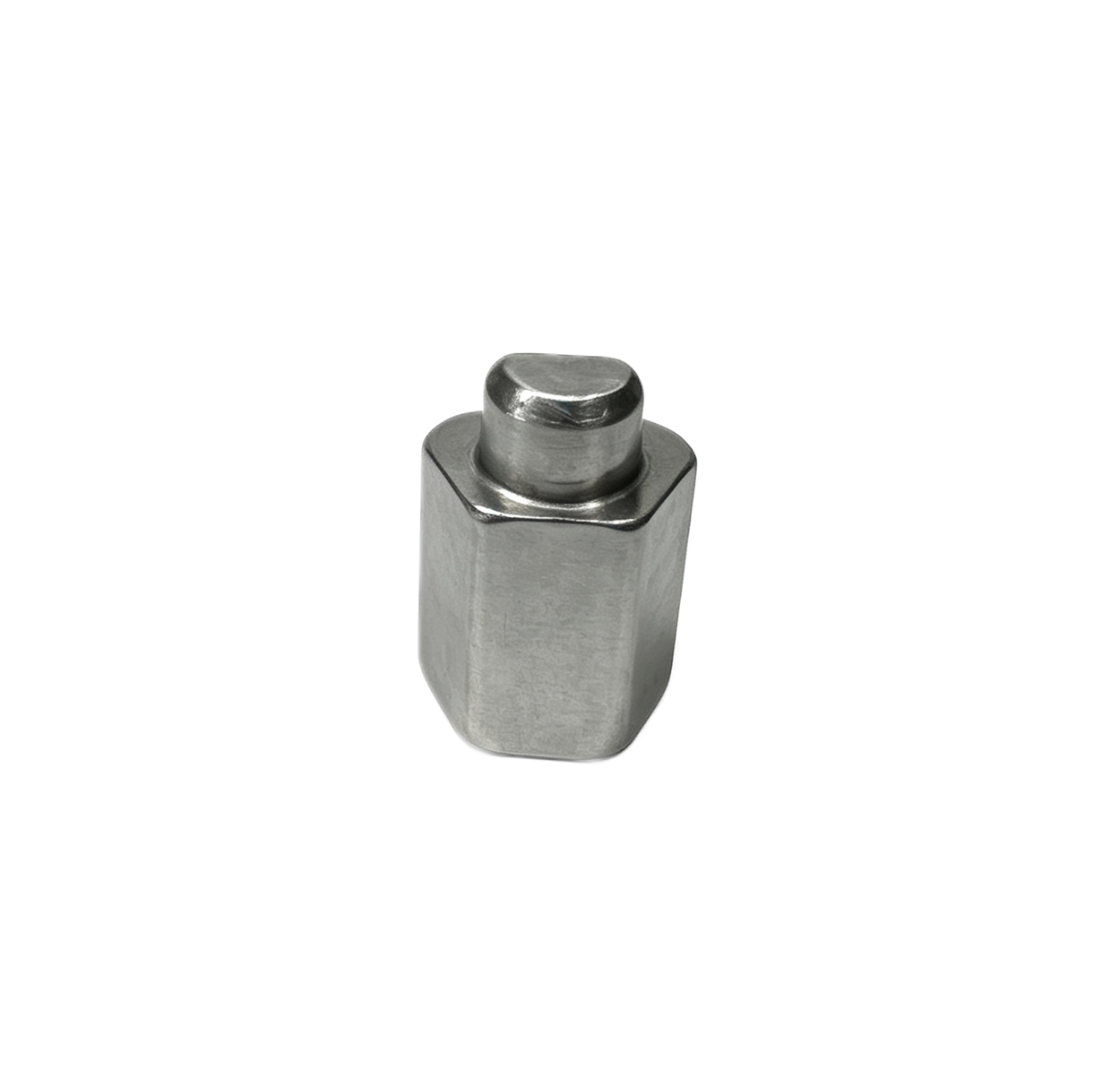

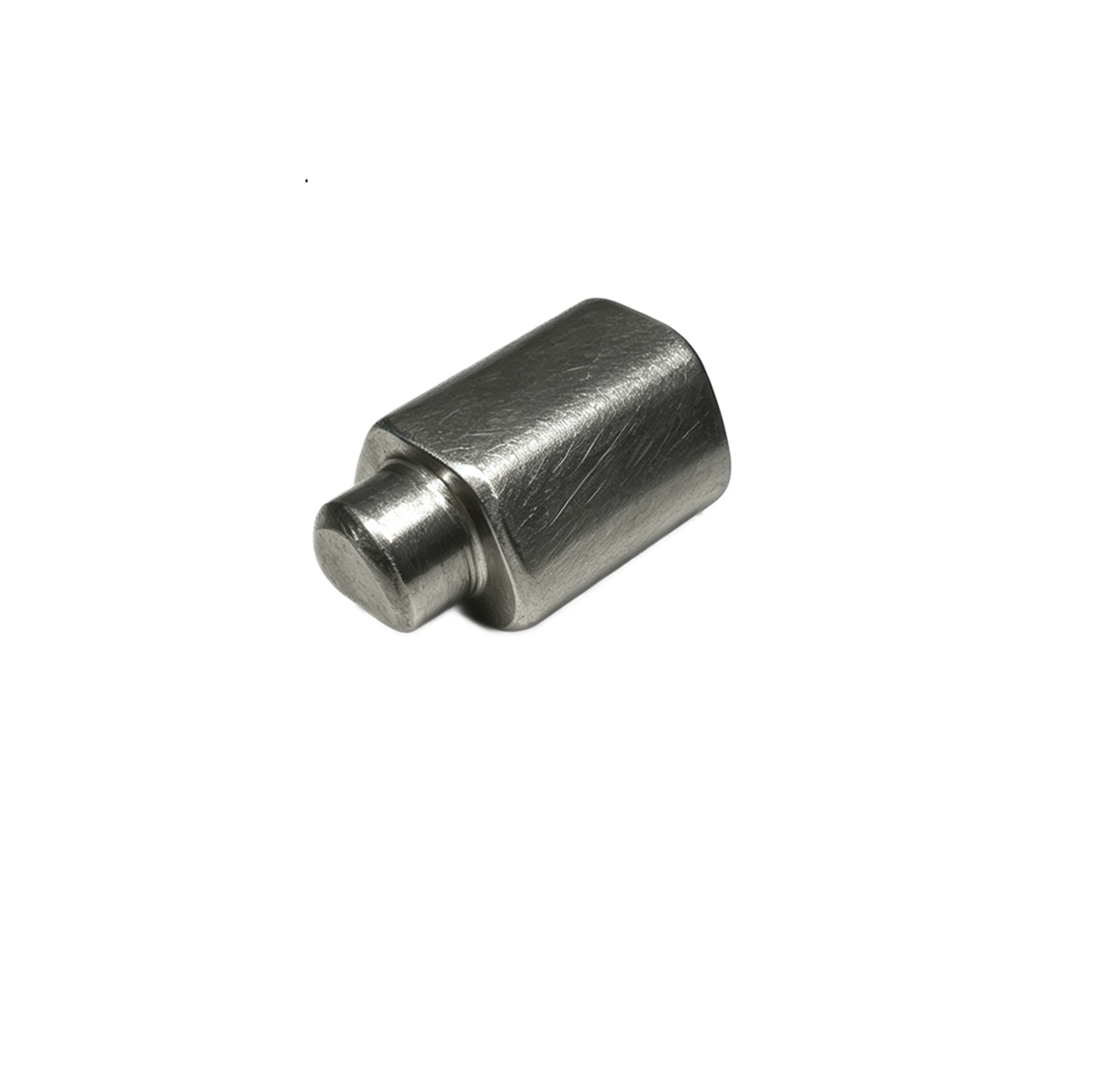

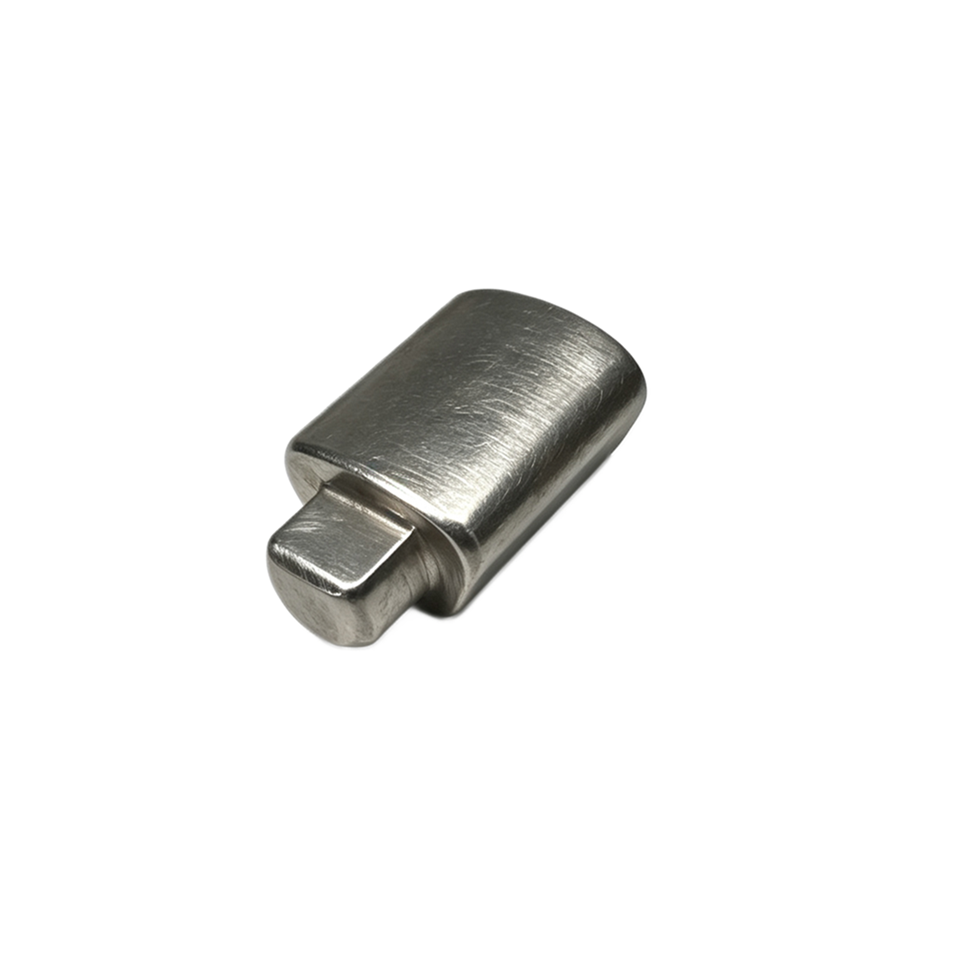

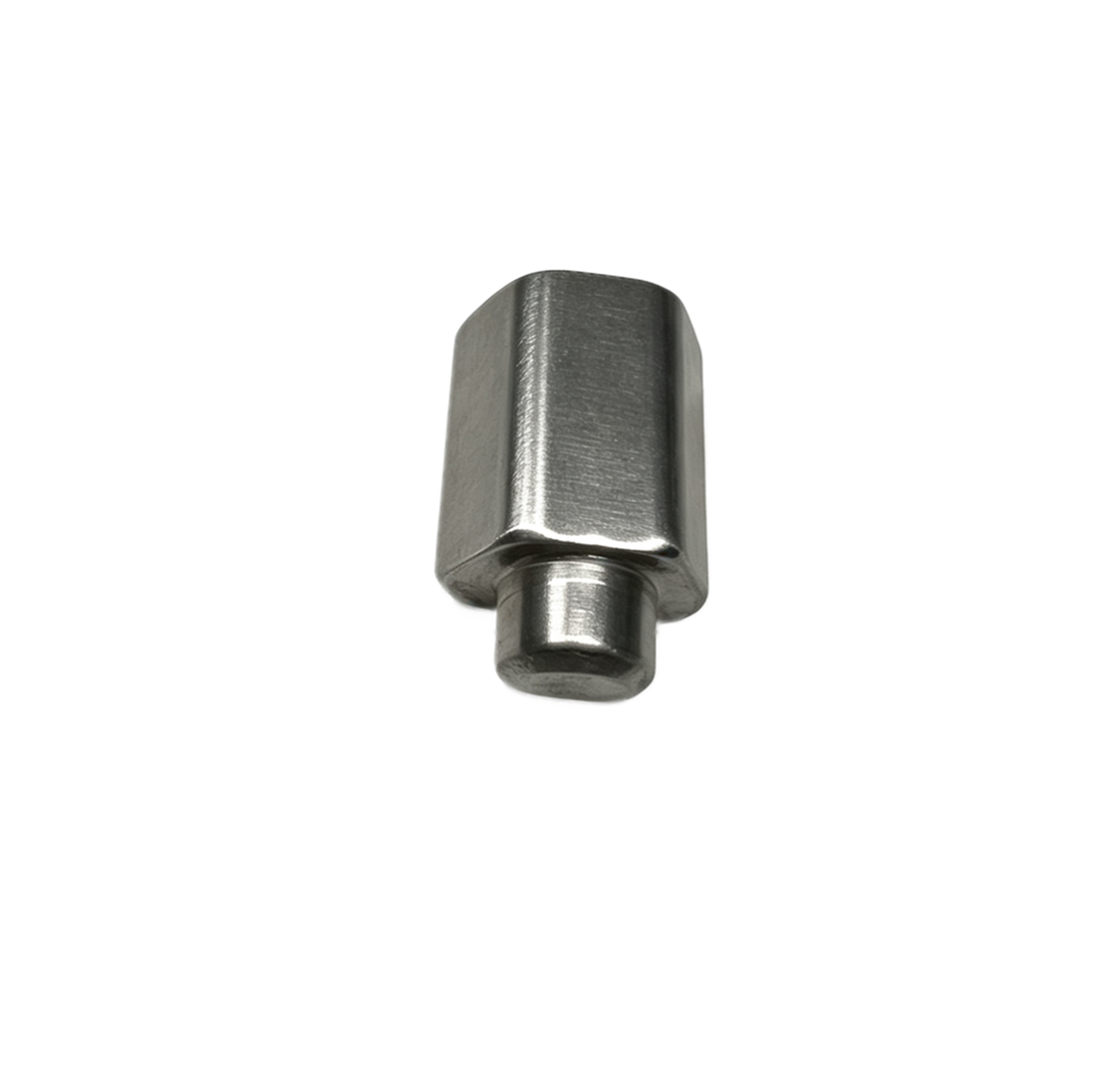

Shoulder Locating Pin with U-Shaped Head – Anti-Rotation Tapered Stepped for Precision Jig & Fixture

Product Content:

A locating pin is only useful if it lands in the same spot every time. That’s the whole point of this one. The shoulder gives you a positive depth stop, the tapered step locks into the bushing with a wedge fit that eliminates play, and the U-shaped head lets you pull it out without prying or damaging the bore. You drop it into the fixture plate, the taper engages, and the part locates off the shoulder. The narrow front section guides the pin into the hole; the wider back section locks it solid. No slop, no rotation, no guessing. We make these from hardened steel and grind the critical diameters so the taper contacts evenly across the full engagement. They’re not pretty, but they’re repeatable to a couple of tenths.

Product Specification:

Technical Details:

The Shoulder Locating Pin with U-Shaped Head – Anti-Rotation Tapered Stepped for Precision Jig & Fixture key dimensions on this pin are the two step diameters. The front measures 12.4mm, the rear is 17.5mm, and the overall height sits at 26.44mm. The U-shaped head is milled across the top. The shoulder face is ground square to the pin axis—if that face is off, your workpiece sits crooked. The tapered section between the two diameters is what gives you the anti-rotation feature. As you drive the pin into the bushing, the taper wedges tight, eliminating any rotational movement. The 12.4mm front section guides into the locating hole, and the 17.5mm rear locks into the taper. We harden these to 58-62 HRC and grind the O.D. after heat treat to hold straightness within 0.005mm. The U-shaped head is not just for extraction—it also tells your operator which end goes in the hole.

Core Advantages:

• The Shoulder Locating Pin with U-Shaped Head – Anti-Rotation Tapered Stepped for Precision Jig & Fixture. U-shaped head gives you a grip for quick pull-out without special tools

• Tapered step design locks the pin solid—no rotation, no play in the bore

• Front 12.4mm section guides into the hole, rear 17.5mm locks it tight

• Shoulder provides a repeatable depth stop for consistent Z-axis positioning

• Hardened and ground for wear resistance and dimensional stability

Wide Usage:

• Shoulder Locating Pin with U-Shaped Head – Anti-Rotation Tapered Stepped for Precision Jig & Fixture Jig plates and fixture bases where you need repeatable part location

• Machine tool setups that require quick changeovers between runs

• Inspection fixtures where the pin locates a part for measurement

• Assembly stations where operators load and unload parts frequently

• Welding fixtures that need a pin that won’t rotate under clamp pressure

• Any workholding setup where you want to eliminate the guesswork
