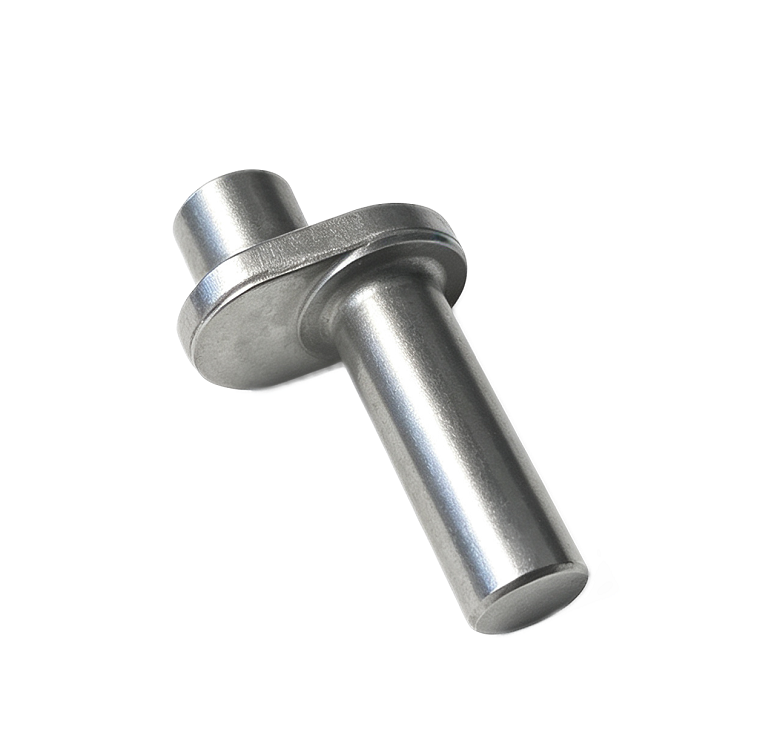

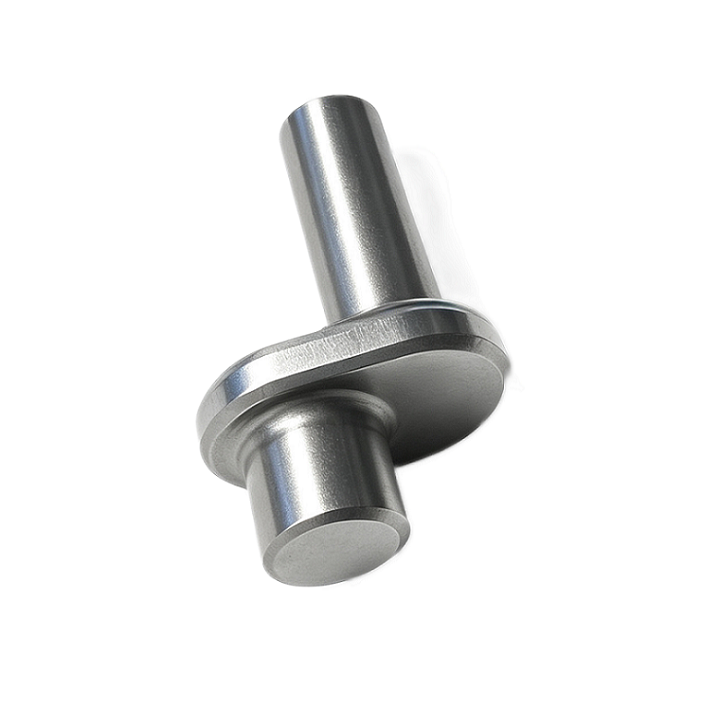

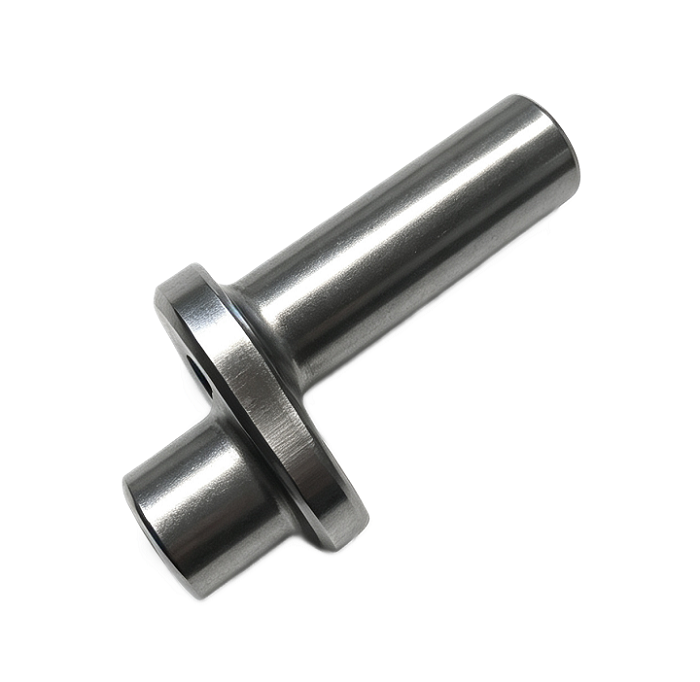

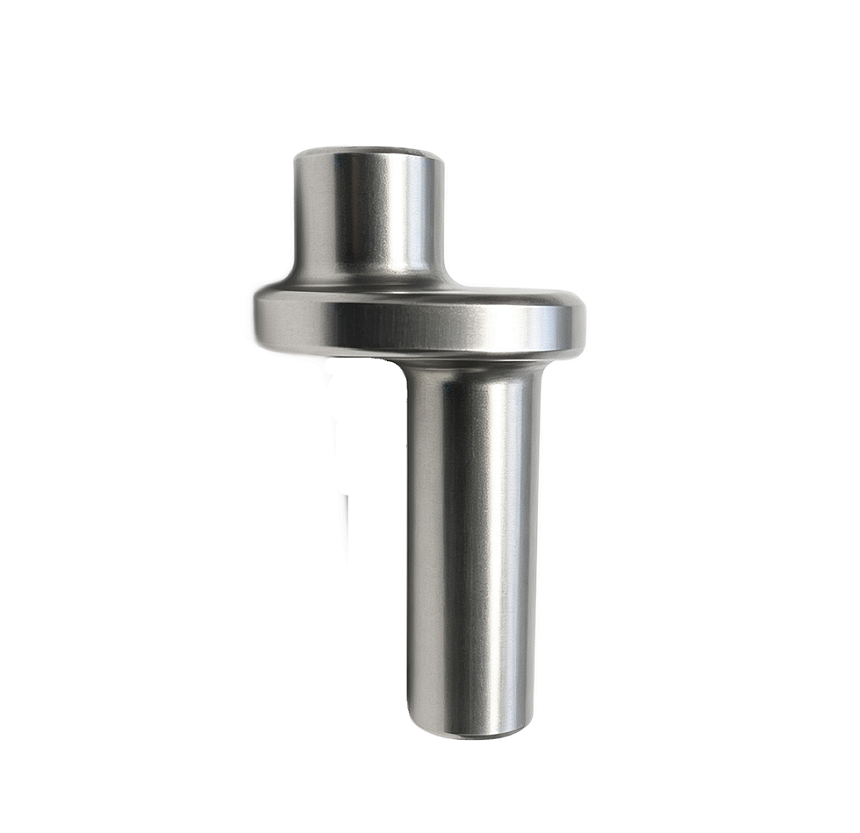

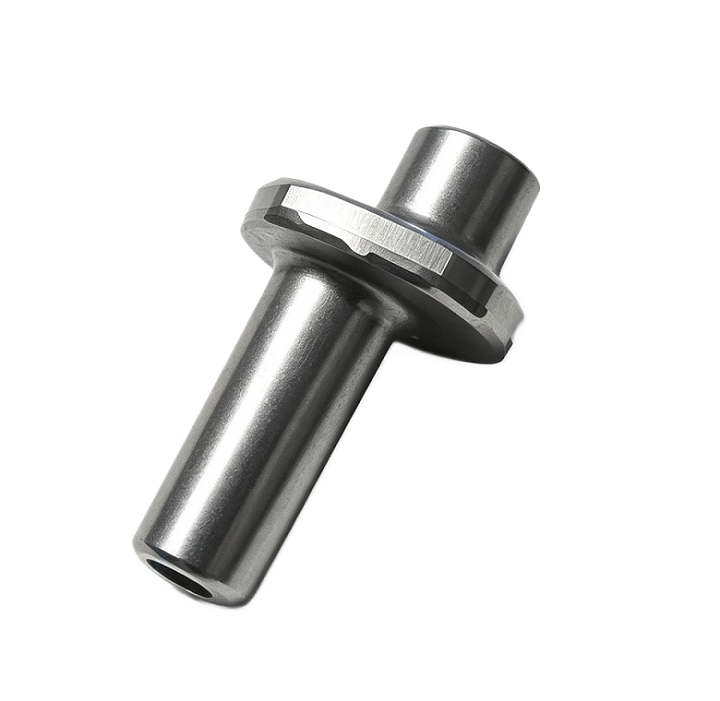

Stepped Dowel Pin for Automotive Seat Slide Rail Positioning

Product Description:

This Stepped Dowel Pin for Automotive Seat Slide Rail Positioning from Qimao Metal Manufacturer originally designed because a customer came to us with a problem on their seat assembly line—the straight dowels they were using didn’t have a positive stop feature, so operators had to gauge insertion depth manually, which led to occasional misalignment and rework. We came up with this stepped configuration as a practical fix. The locating diameter engages with the reamed hole in the frame, and the shoulder butts up against the counterbore face—it’s that simple. You get accurate frame-to-rail registration without relying on operator judgment. The lead-in chamfer is worth mentioning too. We put a fair bit of work into getting the angle right so that robotic insertion arms don’t jam, even when there’s slight variation in the bracket stamping. Standard sizes start at 6mm and go up to 16mm, and we’ve done custom diameters for customers who had unique seat architectures. We also offer a few different finishes—the manganese phosphate is our default and it handles most interior corrosion requirements, but we’ve done zinc-nickel for customers in coastal areas where salt exposure is more aggressive.

Specification:

Products Details:

We start with customized steel or alloy steel for these Stepped Dowel Pin for Automotive Seat Slide Rail Positioning—carburizes nicely and gives us a good case-core profile. After machining, we run the parts through a continuous furnace, targeting surface hardness of 58 to 62 HRC with the core staying in the 30 to 40 range. That gives you a surface that resists galling and wear from insertion cycles, while the core stays tough enough for impact loads. We’ve run internal testing—200,000 cycles with lateral loads at various angles—and haven’t seen any cracking at the shoulder transition. Grinding is done on cylindrical grinders we’ve had for years. Our lead grinder has been running these parts for over a decade, so he knows how to hold roundness within a couple of microns. Surface finish lands around Ra 0.3 to 0.4μm, tighter than most prints call for, but that consistency helps with insertion force predictability. We run 100% optical inspection on every batch, tracking diameter, shoulder squareness, and concentricity on SPC charts. Reject rates are consistently below 0.5%.

Product Feature:

• The Stepped Dowel Pin for Automotive Seat Slide Rail Positioning shoulder is a proper stop—you don’t need separate retainers. We’ve seen customers reduce per-seat part count by one or two pieces, which really adds up over a high-volume production run.

• The carburized surface takes wear well. We’ve had assembly plants tell us these pins last about 30% longer than the straight pins they were using before, mainly because the surface doesn’t gall from feeding and pressing operations.

• Diameter tolerance is ±5μm on the locating section. That’s tight enough for consistent press force but not so tight that you get problems from normal bore variations in the frame stampings.

• Our standard phosphate finish passes 96-hour salt spray testing. We’ve shipped to assembly plants in different climate regions and haven’t received a corrosion-related complaint in the past four years.

• Packaging is set up for automated feeding—trays are oriented consistently and parts are separated so they won’t tangle in the feeder bowl.

• We laser-mark each pin with a batch code. If any issue does come up on your assembly line, we can trace it back to heat-treat and grinding records to figure out what happened.

Product Application:

• Stepped Dowel Pin for Automotive Seat Slide Rail Positioning primary use is power and manual seat track assembly for drive mechanism and handle attachment locating.

• Also used in assembly fixtures as a reference point for frame alignment before welding or bolting.

• Helps with model changeovers on production lines running multiple seat variants.

• Used during warranty repairs to align components correctly before seat reinstallation.

• Occasionally serves as alignment reference for seat cushion foam molding operations.
