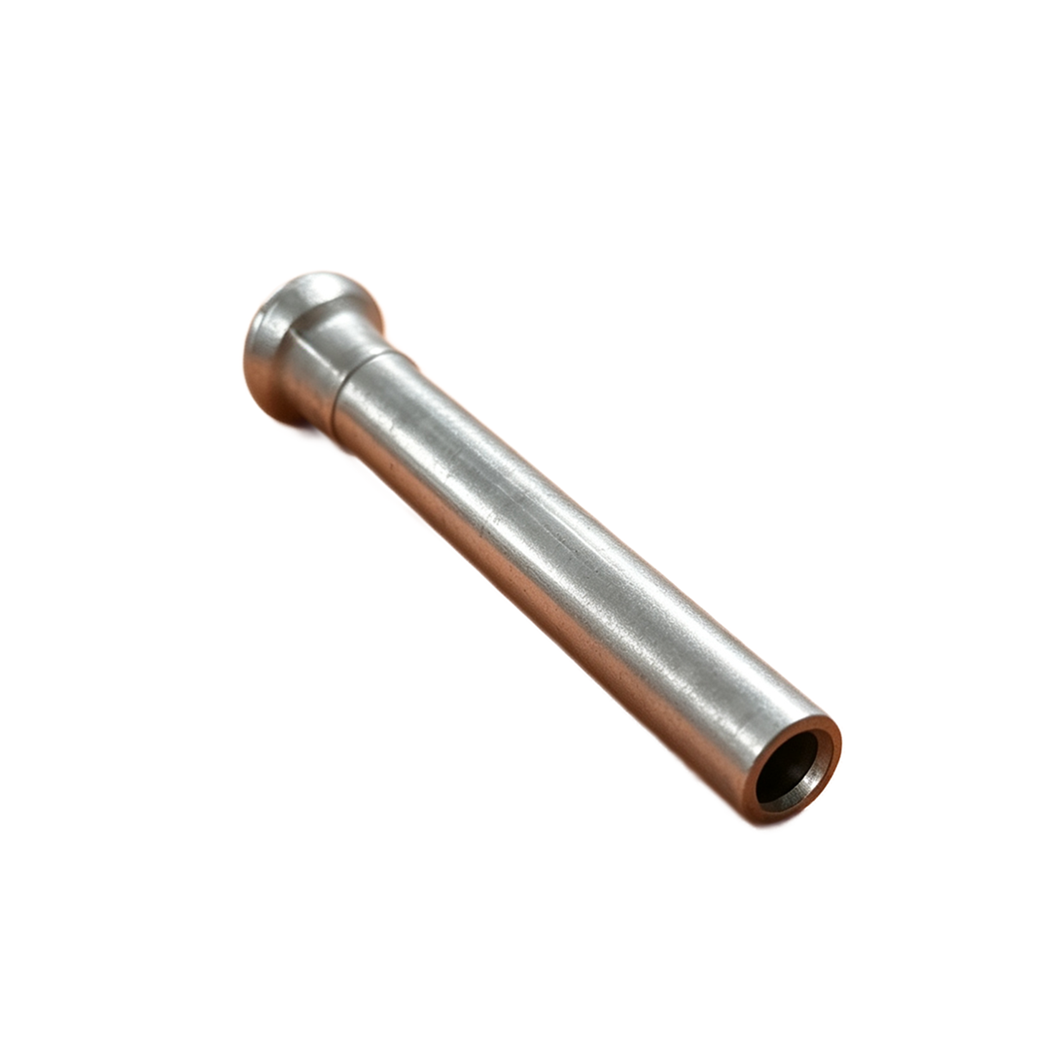

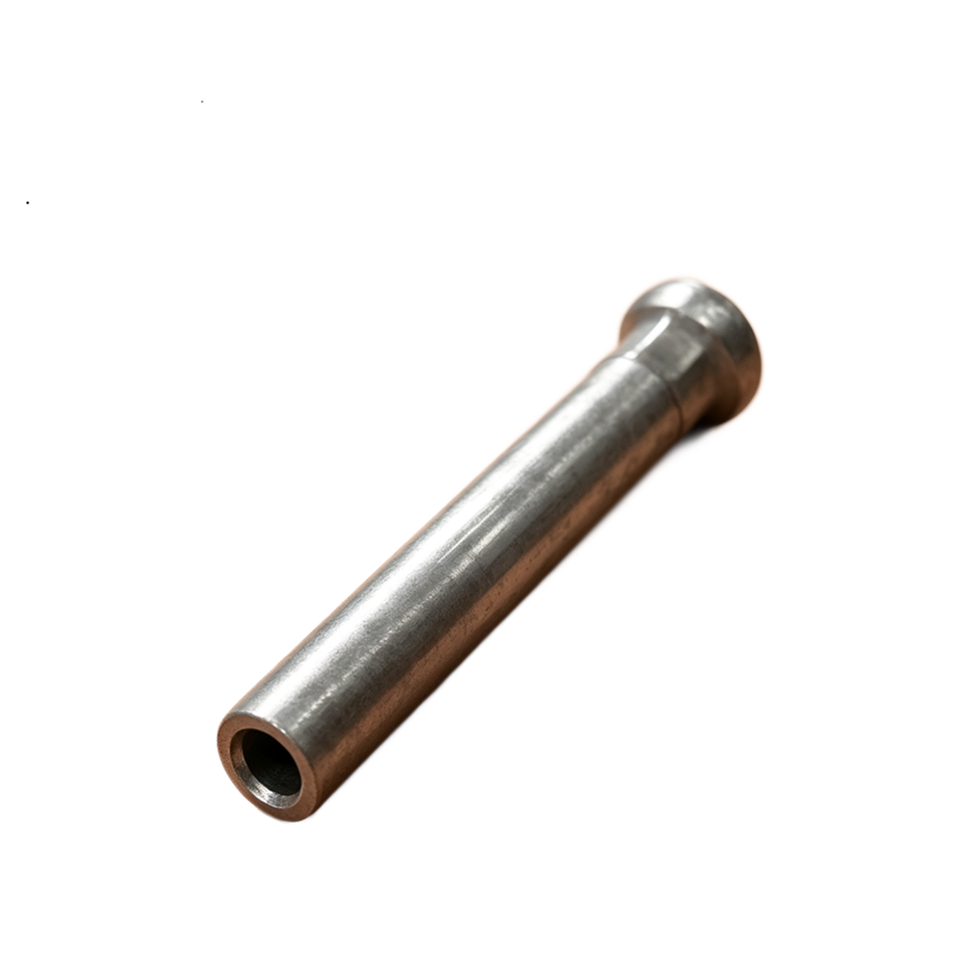

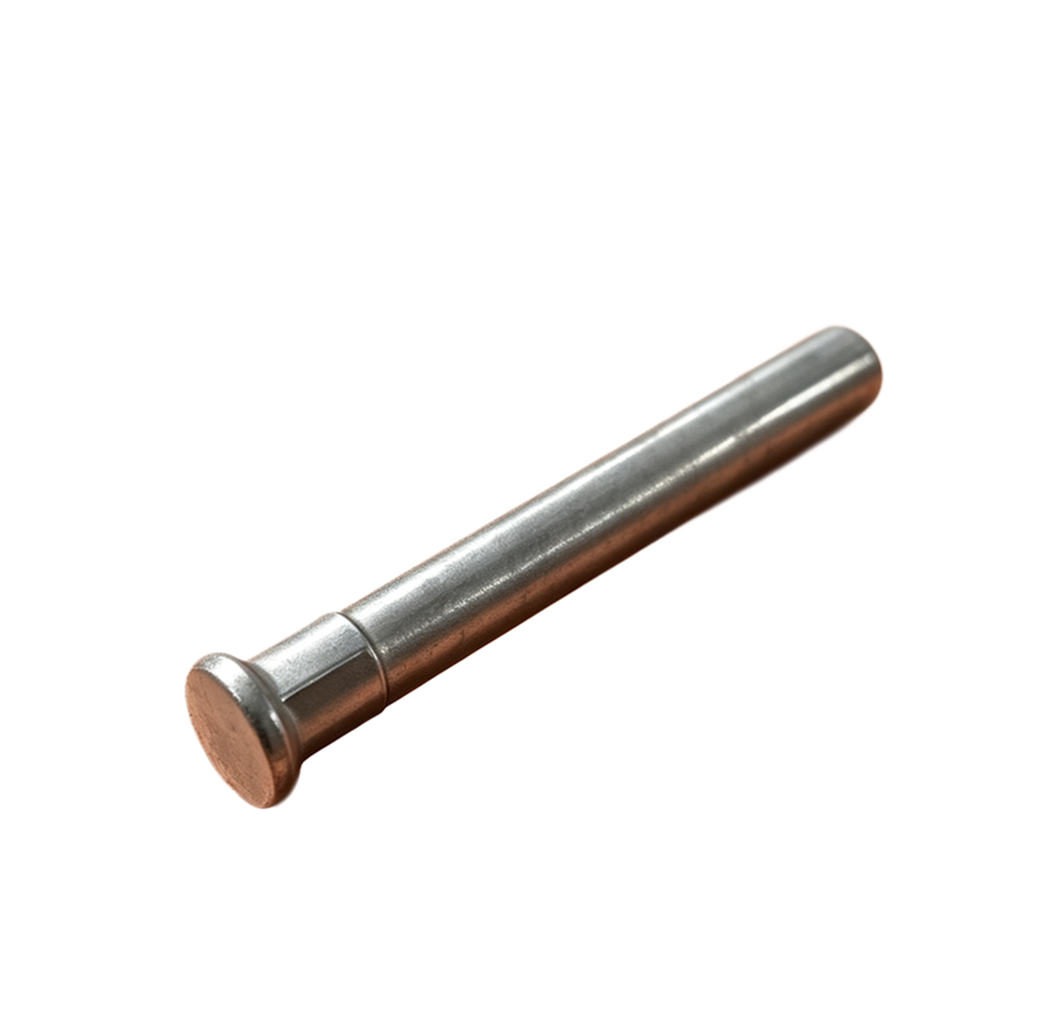

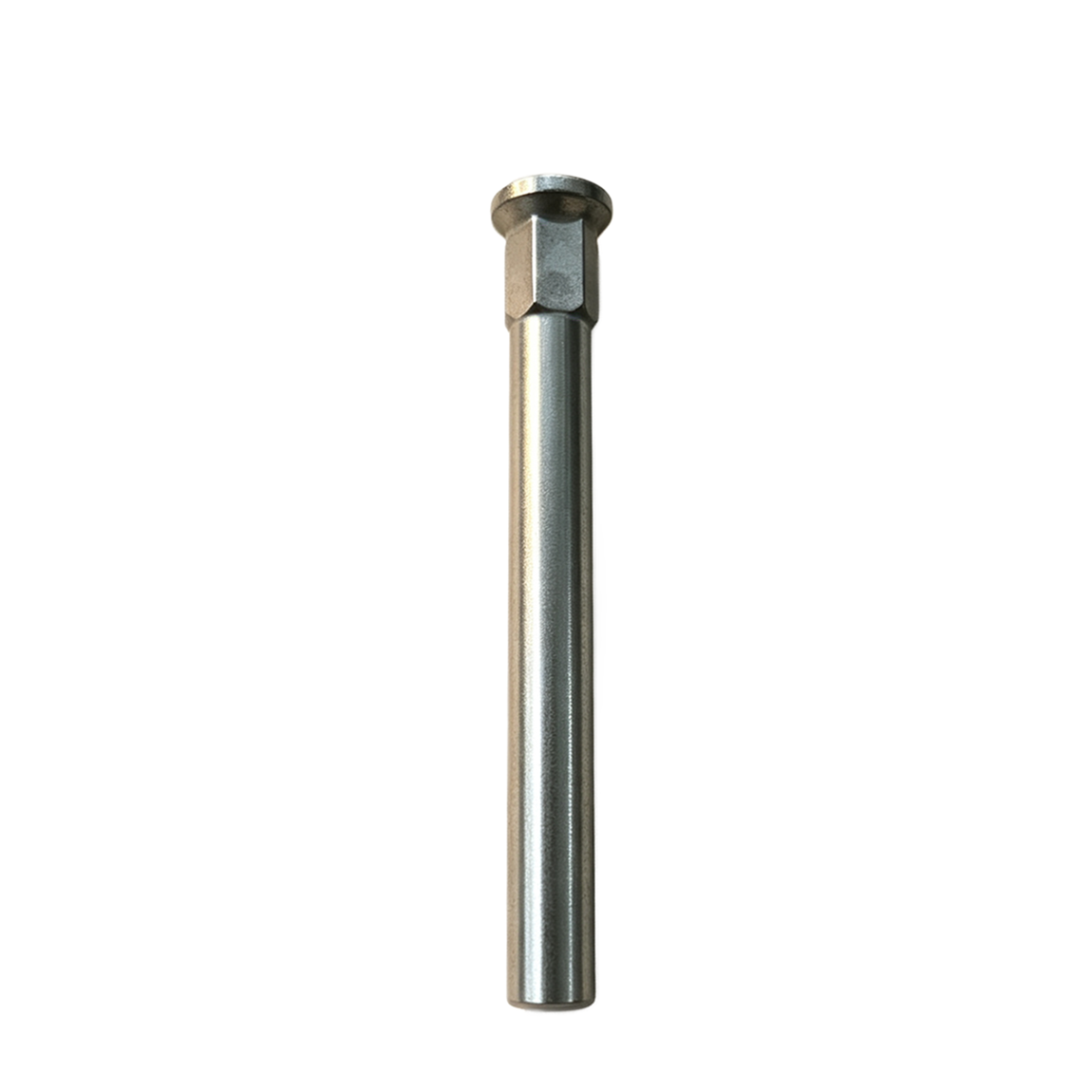

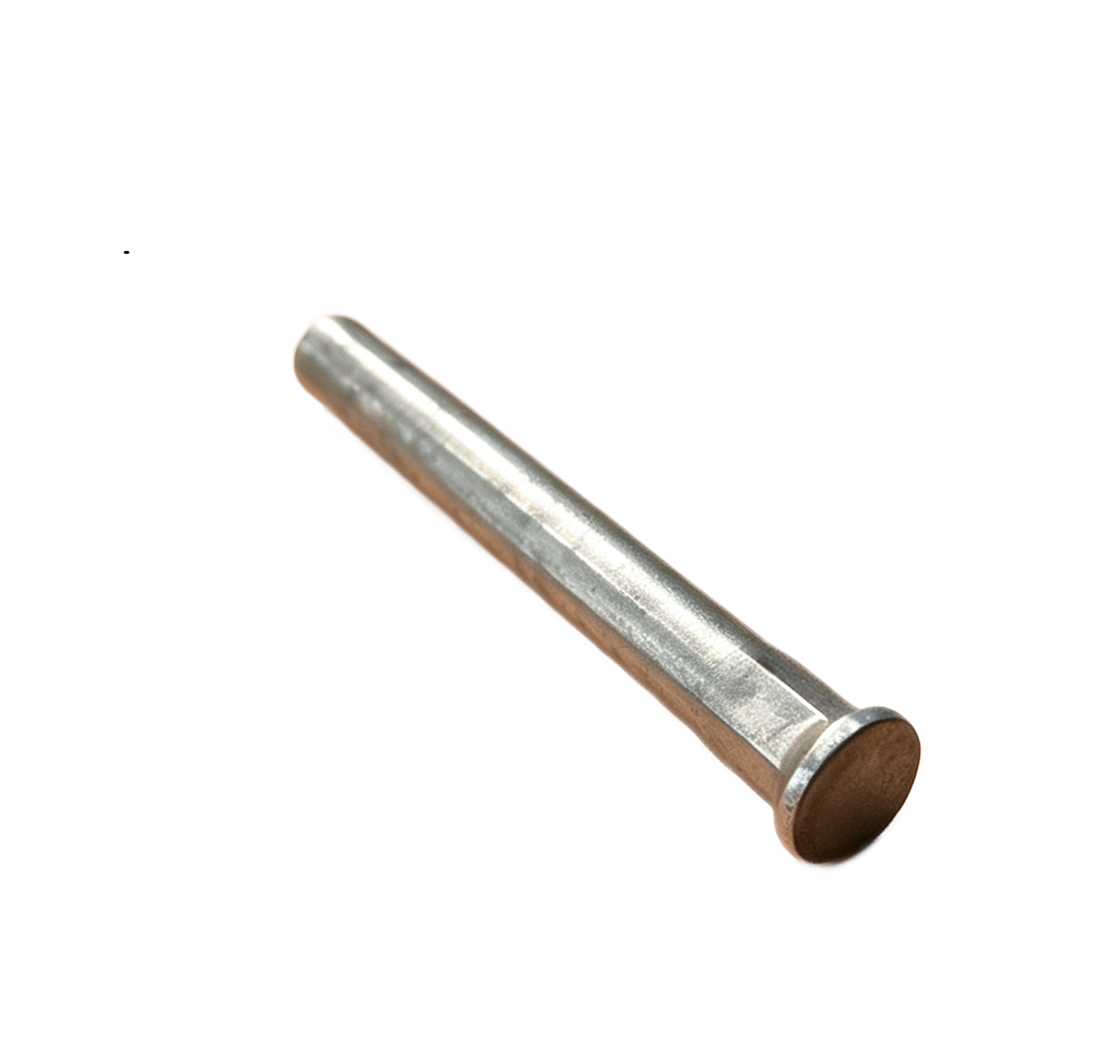

Factory Direct Custom Carbon Steel Hollow Pin – for Auto & Industrial

Product Content:

Qimao Metal Manufacture cold heading is the process we use for Factory Direct Custom Carbon Steel Hollow Pin – for Auto & Industrial. The wire is fed into a header, cut to slug length, then formed into the hollow shape in a single stroke. This is not machining—there is no material removed, just reshaped. The grain flow follows the pin contour, which gives better fatigue resistance than a turned part. After forming, we tumble them to knock off any sharp edges, then chamfer both ends. Heat treatment follows, bringing surface hardness to around 45-50 HRC. The core stays tougher because of how cold working affects the material structure. We gauge the OD after heat treatment because there is a slight dimensional shift. Plain finish is standard, phosphate coating available for corrosion protection.

Product Specification:

Technical Details:

The Factory Direct Custom Carbon Steel Hollow Pin – for Auto & Industrial sizes range from 4mm to 20mm OD, lengths 10mm to 120mm. The cold heading process holds tolerances well—typically ±0.03mm on smaller diameters—and because the material is work-hardened during forming, there is less springback than you would get with machined parts. Surface finish comes out of the header at around Ra 1.6, which is good enough for most applications. Straightness is generally fine, though we check it on a granite table before packing. The chamfers are formed during the heading operation, not cut afterwards, which means they are consistent from pin to pin. We offer phosphate coating as an option. It adds a layer of corrosion resistance, but it does change the insertion feel slightly—something to consider if you are using automated assembly equipment. Plain finish works fine for dry environments. Each batch is traceable by lot number.

Core Advantages:

• The Factory Direct Custom Carbon Steel Hollow Pin – for Auto & Industrial produced by Cold-headed, not machined. The grain structure follows the pin shape rather than being cut through, which means better fatigue resistance and fewer stress points. Cutting leaves micro-tears; cold heading avoids that.

• Lighter than solid pins by roughly a third. That difference adds up in high-volume assemblies and lowers shipping weight. In automotive work, lighter components matter for handling, though in most industrial settings, it just makes parts easier to handle on the line.

• Dimensions stay consistent from the header. No tool wear like you get with cutting operations, so the first pin matches the ten-thousandth. Less sorting on your end, fewer rejects during assembly.

• Chamfered ends are formed, not cut afterwards. Cut chamfers can have chatter marks or uneven angles. Formed chamfers are smoother and guide into the hole more reliably, which matters in automated assembly.

• Plain finish as standard. Phosphate coating available for corrosion protection—it also holds oil, which helps insertion. Test a sample first with automated equipment, as it changes surface feel slightly.

Wide Usage:

• Factory Direct Custom Carbon Steel Hollow Pin – for Auto & Industrial for pedal assemblies and clutch linkages in passenger cars and light trucks. The lighter weight of these hollow pins actually changes pedal feel noticeably—something drivers pick up on.

• Conveyor chain joints on packaging lines. Those lines run non-stop, often 24/7, so the pins have to hold up under continuous cyclic loading without wearing out fast.

• Planting and harvesting equipment for agriculture. These machines work in dusty, dirty conditions, and operators appreciate that the pins keep functioning without jamming up from debris.

• Fixture pins in welding jigs. The consistent OD tolerance means the pin drops into the same position every time, which makes a real difference when you are doing repeatable weld setups.

• Replacement parts for older industrial machinery. European and Japanese equipment especially—when the original parts are discontinued, these pins often serve as a direct fit substitute with no modification required.
