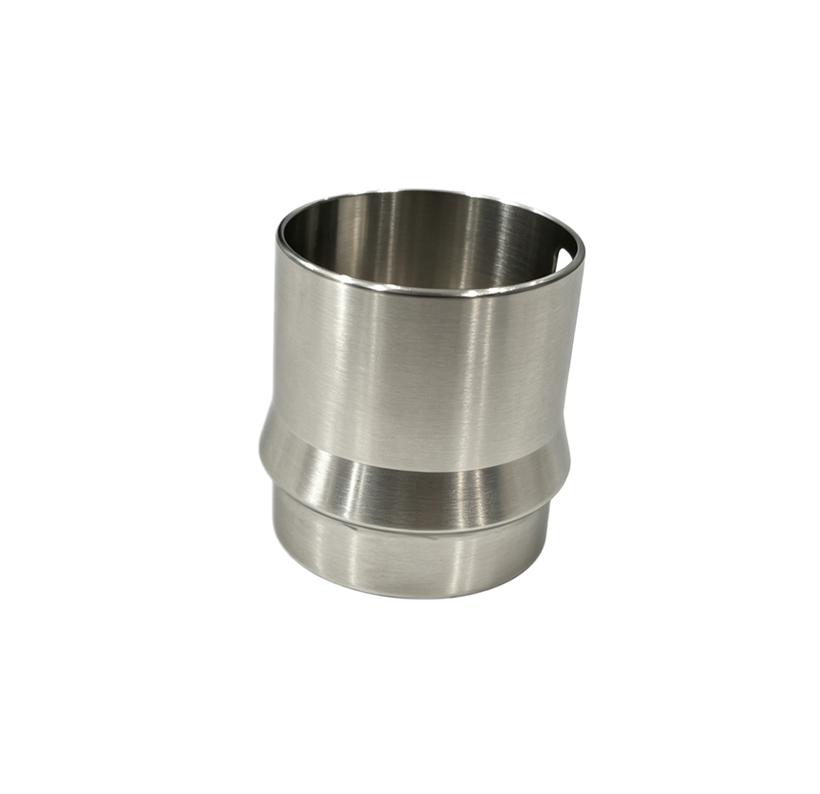

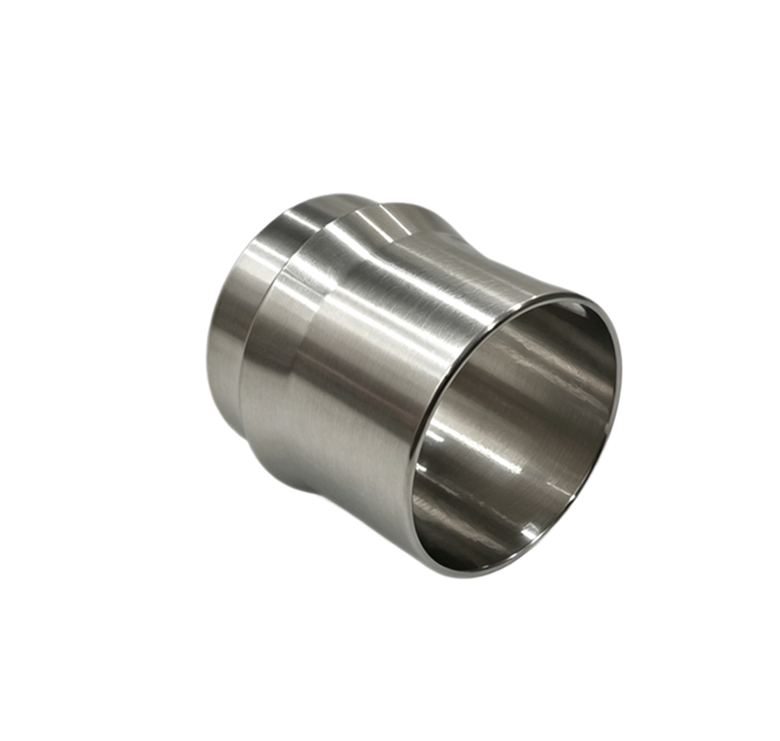

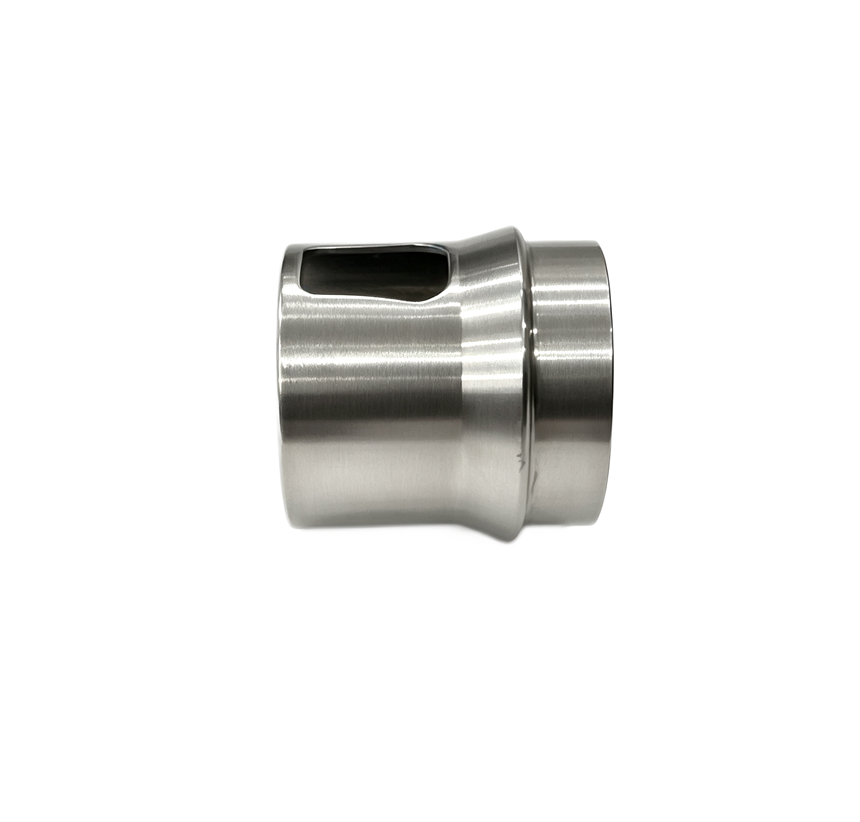

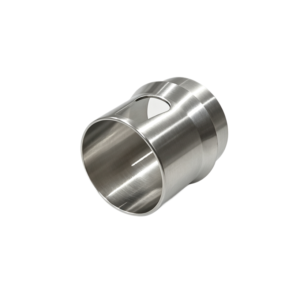

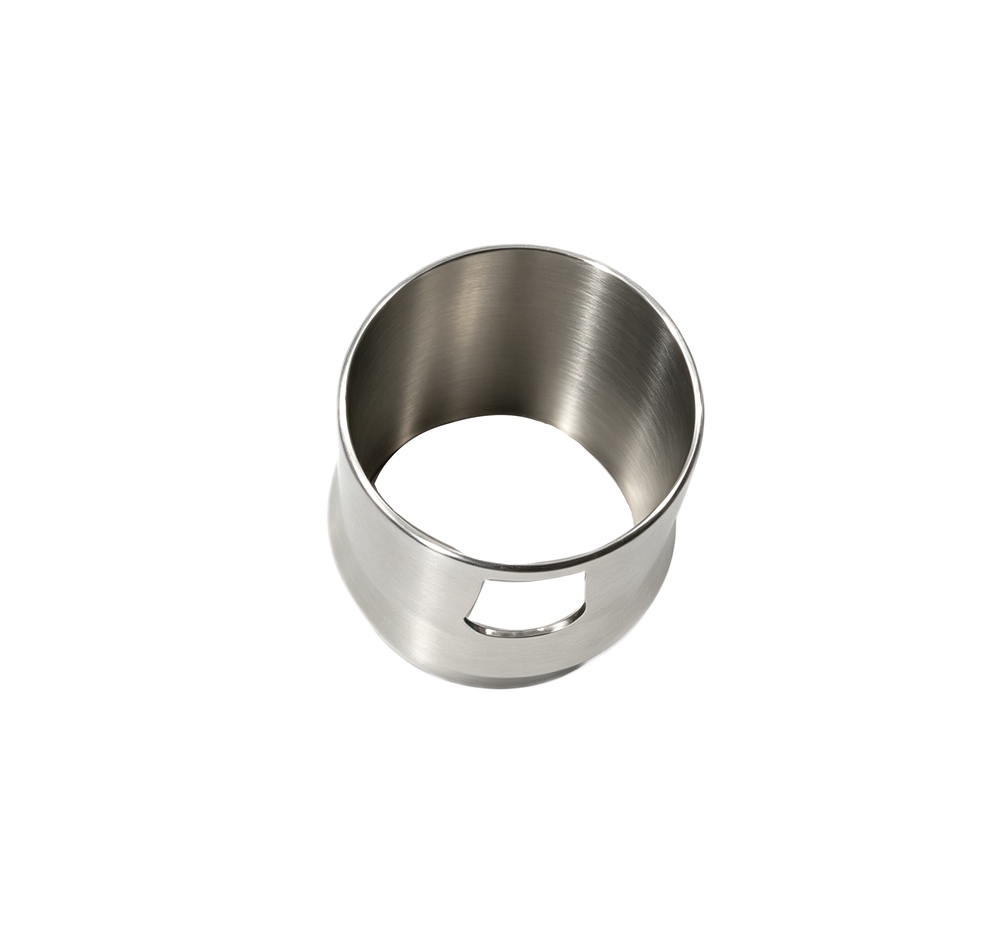

Stainless Steel CNC Machined Circular Connector Shell Female Housing

Product Content:

Qimao Metal Manufacturer Stainless Steel CNC Machined Circular Connector Shell Female Housing is machined from a solid stainless steel bar. Not a casting. Here’s why that matters: castings carry porosity risk, and thread roots are the first place it shows up under load. We run multi-axis turn-mill centers, so the thread and mating face come off the same setup. Less stacked tolerance, better concentricity. The female cavity is cut to your insert’s actual dimensions — not a “close enough” nominal size. Inserts drop in clean, no rattle, no forcing. Every batch gets gauged on thread go/no-go and critical dimensions before it ships. Passivation is standard, not an upsell. Material certs and inspection reports are available on request.

Product Specification:

Product Details:

Stainless Steel CNC Machined Circular Connector Shell Female Housing material is 304 stainless. If require dealing with chlorides — coastal, offshore, chemical washdown — go 316. The coupling is threaded with an anti-loosening feature once mated, so it holds under vibration instead of backing off. Cavity depth and bore are set by the insert you’re using, so send us that spec before we cut. We machine to your mating part, not to a generic drawing. Surface finish is as-machined by default; if you need a specific Ra, say so and we’ll quote it. Ingress protection depends on your seals and install method — the shell itself provides the structural basis for IP67, but the seal is what makes it watertight.

Core Feature:

• Stainless Steel CNC Machined Circular Connector Shell Female Housing use olid bar stock, CNC turn-mill — zero casting porosity risk

• Thread and mating face machined in one setup — minimal stacked tolerance

• Passivated as standard — better corrosion resistance than raw machined surface

• Cavity machined to your specified insert — controlled fit clearance

• Wall thickness and relief groove designed around stainless work-hardening behavior

Wide Usage:

• The Stainless Steel CNC Machined Circular Connector Shell Female Housing for food and beverage line sensor connectors — daily high-pressure washdown kills plated shells

• Pharmaceutical and cosmetic equipment — cleaning agents run mildly acidic or caustic; stainless is the baseline

• Marine and offshore — salt fog; 316 offers noticeably better pitting resistance than 304

• Industrial automation — threaded coupling holds up under vibration where snap-lock fails

Factory Advantage:

Qimao Metal Manufacturer with Fifteen-plus years in Stainless Steel CNC Machined Circular Connector Shell Female Housing. The biggest lesson: stainless isn’t “harder aluminum.” It behaves completely differently. Cutting heat concentrates at the edge. Poor cooling means work hardening, and the next pass cuts worse. Our machinists know when to drop feed and when to change the insert — they don’t push through to hit a cycle time.

On equipment: multi-axis turn-mill centers complete OD, face, thread, and cavity features in one chucking. Fewer setups means better concentricity and thread-to-face perpendicularity. Inspection uses thread gauges, an optical comparator, and a surface roughness tester. Test reports ship with the order. No middlemen — you get factory pricing, and when something’s off, you talk to an engineer, not a call center.
