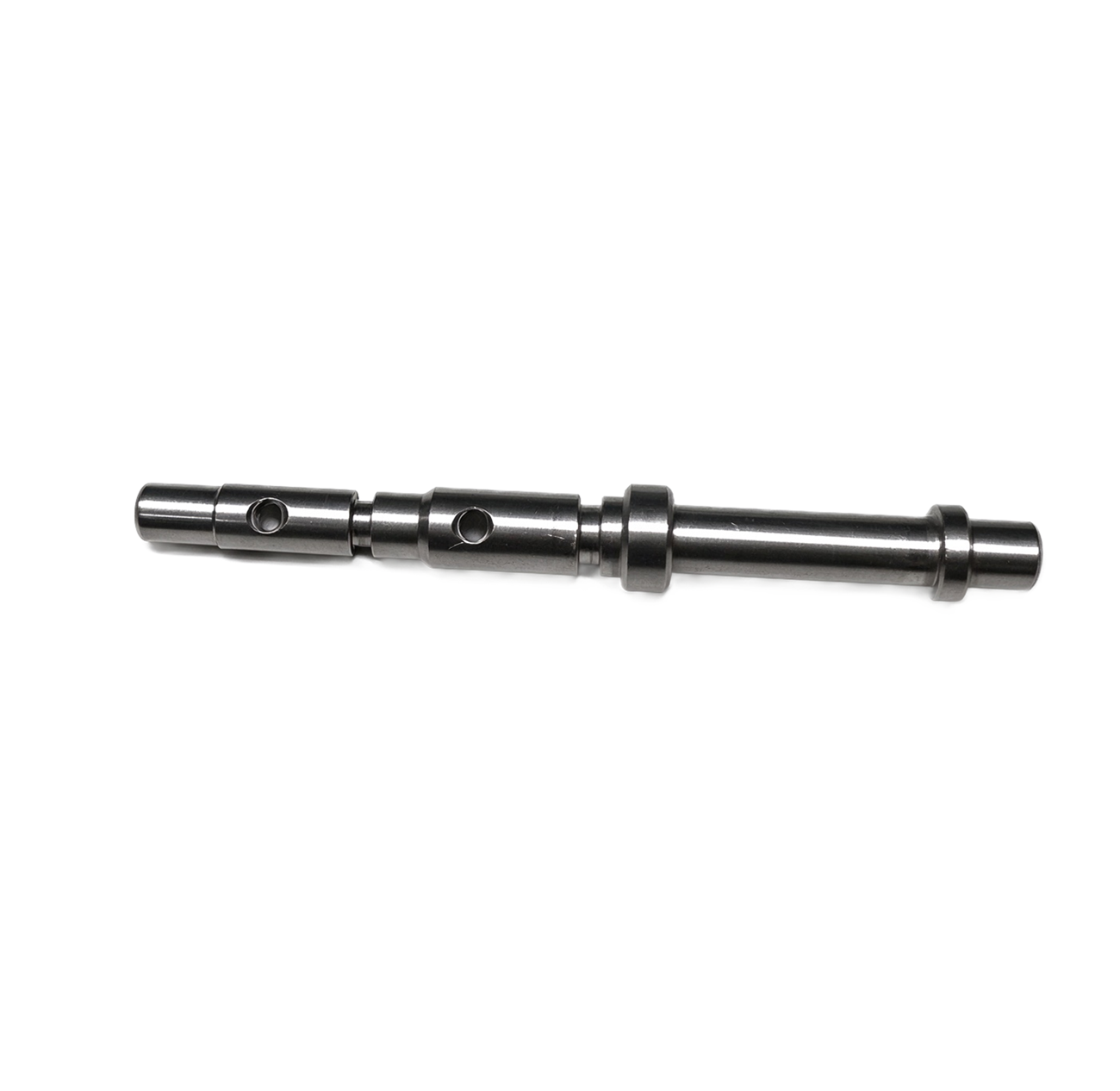

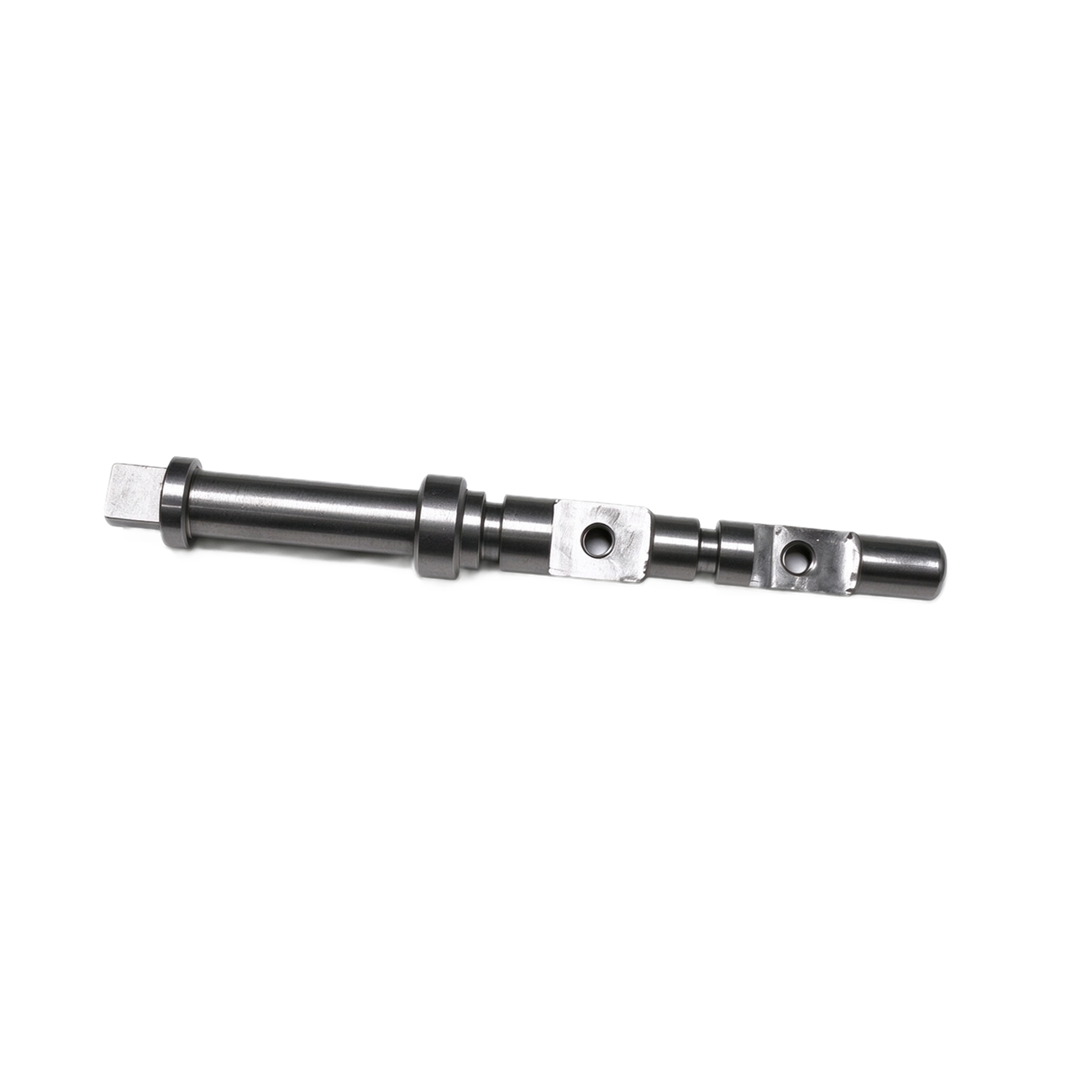

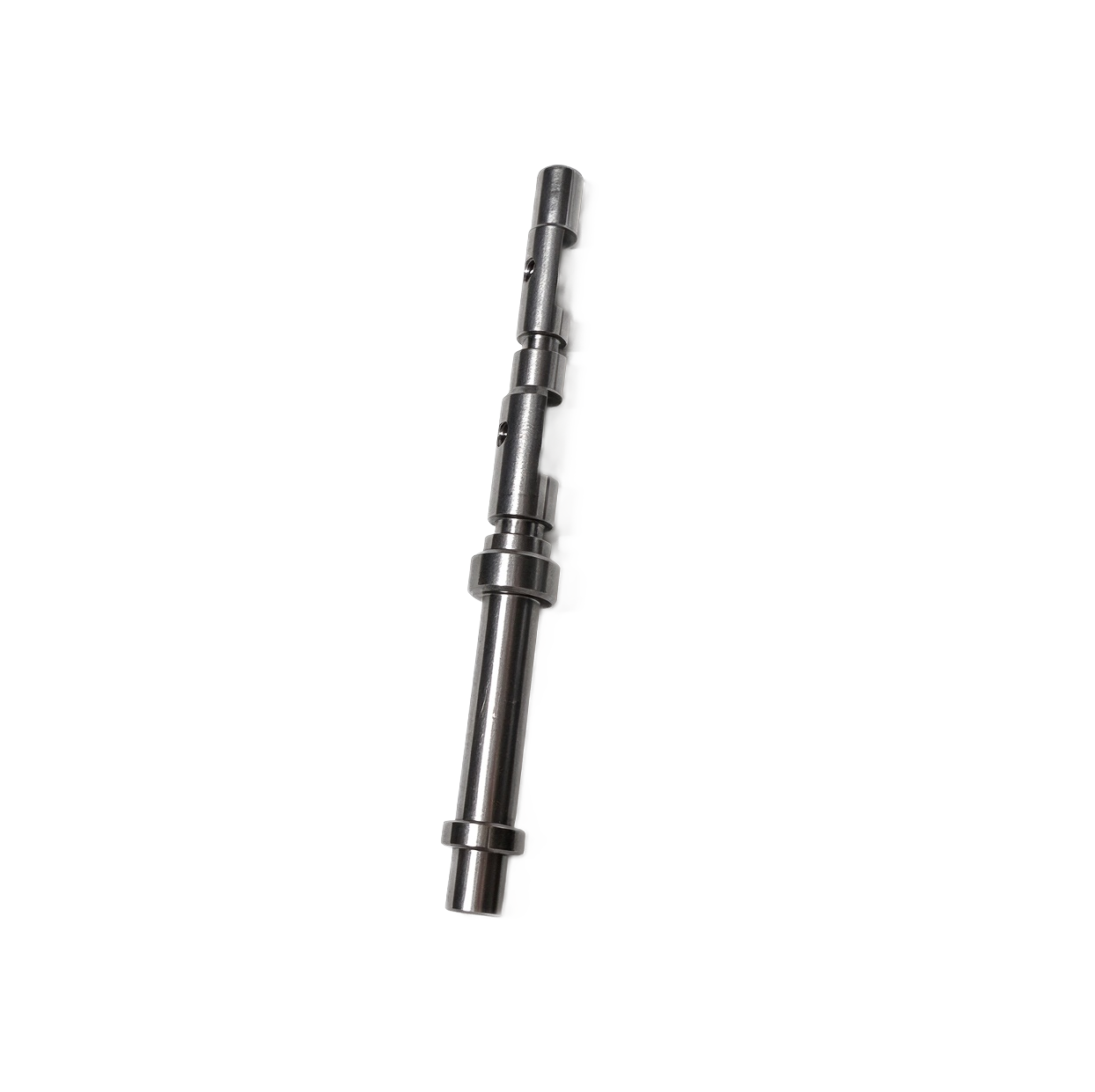

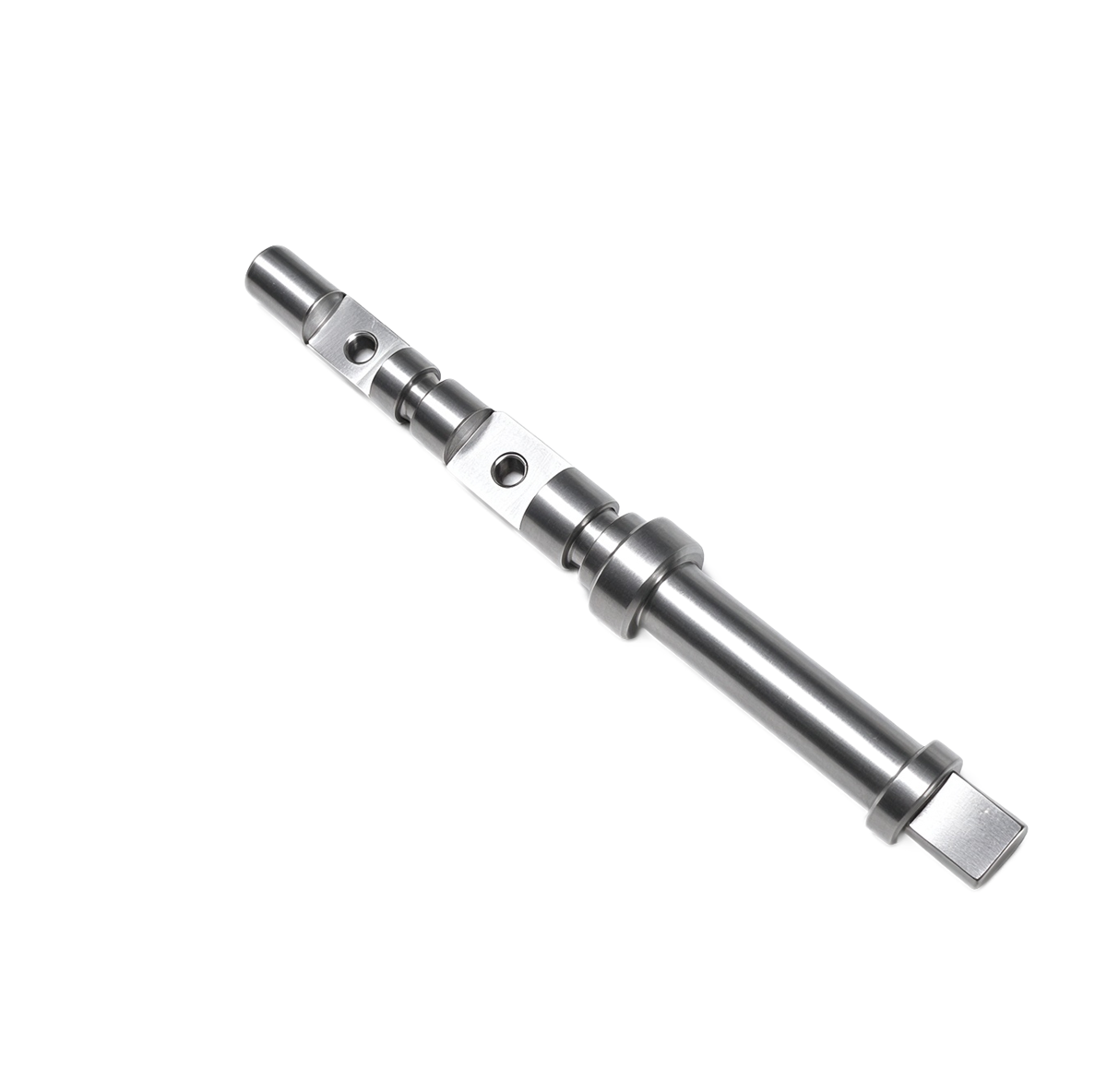

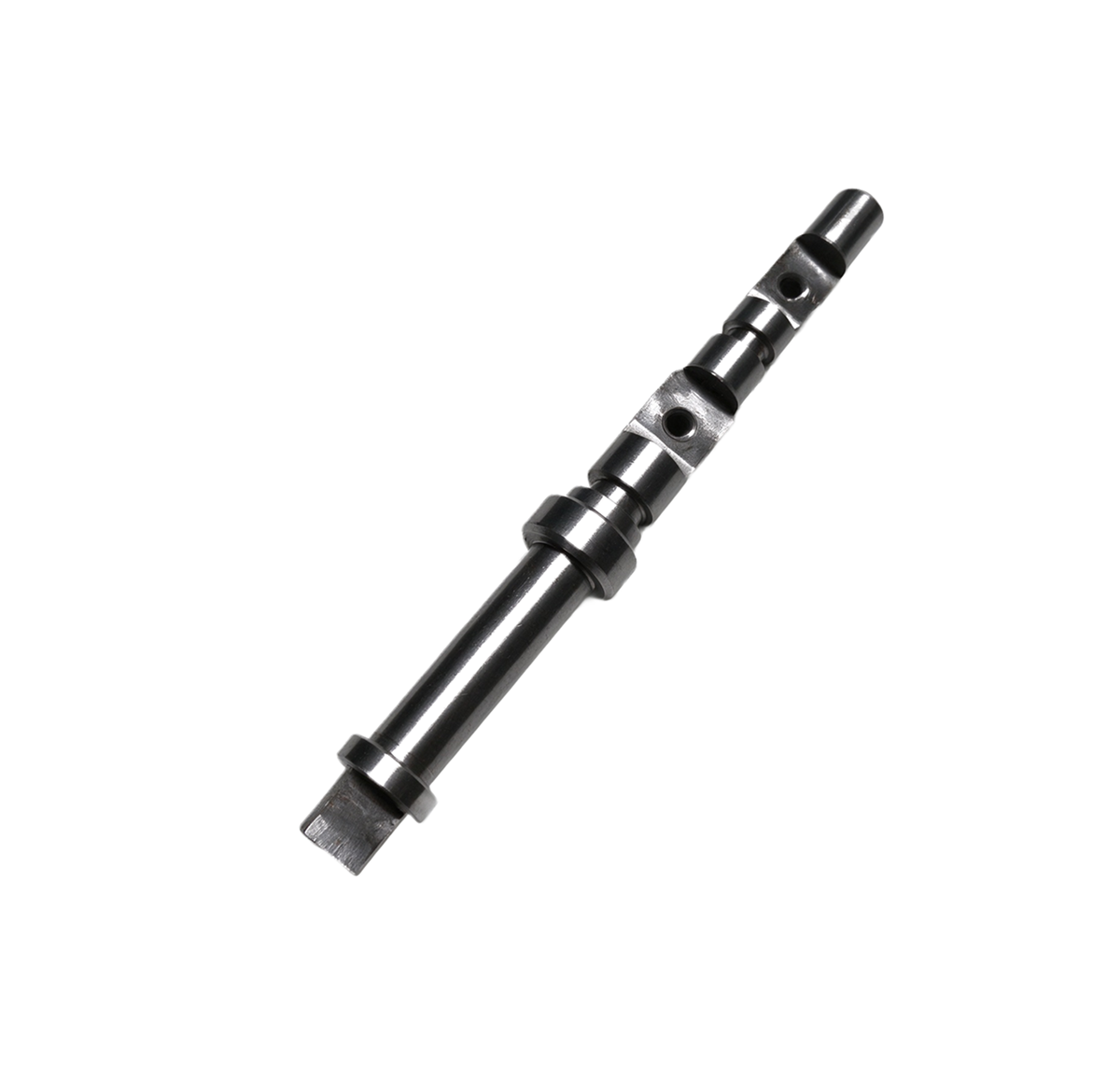

OEM CNC Turned Washing Machine Traction Motor Shaft With Flat End For Drain Actuator

Product Content:

This OEM CNC Turned Washing Machine Traction Motor Shaft With Flat End For Drain Actuator sits between the traction motor and the drain actuator. The motor end fits into the rotor or gear; the flat end engages the actuator linkage. When the motor turns, the shaft transfers that rotation to the drain actuator, so the washing machine can drain on schedule.

If the flat is off-angle, or the shaft runs out of true, the actuator binds and the drain cycle fails. A small runout at the bearing seat can turn into noise and wear after a few thousand cycles.

That is why we machine the flat and the bearing seats in the same setup, keeping them concentric. Before the part leaves the machine, we check runout, flat position, and diameter. Parts that do not pass stay off the pallet.

Key Specs & Dimensions:

Product Name:	Item No.:	Material:	Measurement(mm):			Surface Finish:	Weight(g):
			L:	W:	D:
OEM CNC Turned Washing Machine Traction Motor Shaft With Flat End For Drain Actuator	QM3022	Stainless Steel	67.63		7.9/4.8/5/7/3.25	Polish	10.06

Product Details

If you need OEM CNC Turned Washing Machine Traction Motor Shaft With Flat End For Drain Actuator, made to your drawing or sample, with no standard size limit. Materials include stainless steel, alloy steel, carbon steel, and brass. CNC turning, milling, grinding, heat treatment, and surface treatment are all supported. The flat end can be milled to your width and angle; cross holes, steps, shoulders, chamfers, and threads can also be added. Key items we control are diameter tolerance, concentricity, flat position, runout, surface roughness, and hardness. Before machining, we review the drawing and flag anything hard to hold or likely to deform during clamping. Prototyping, trial production, and mass production are all supported.

Key Features:

1-The OEM CNC Turned Washing Machine Traction Motor Shaft With Flat End For Drain Actuator made to your drawing or sample. No standard size limit. We work from your dimensions, tolerances, and surface requirements, not from a catalog. If you only have a worn sample, we can measure it and reverse engineer the drawing.

2-Flat end milled to your width and angle. The flat drives the actuator linkage, so its position and angle matter as much as the diameter. We machine it in the same setup as the bearing seats to keep them concentric.

3-Material matched to the job. Stainless steel for corrosion resistance, alloy steel for strength and wear, carbon steel for cost-sensitive parts, brass for machinability.

Use Cases:

1-OEM CNC Turned Washing Machine Traction Motor Shaft With Flat End For Drain Actuator for the traction motor assemblies. The shaft connects the motor to the drain actuator and transmits torque through the drain cycle. It needs to run true at motor speed without adding vibration or noise.

2-Drain actuator assemblies. The flat end engages the actuator linkage. If the flat is off-angle, the linkage binds and the drain cycle fails, so flat position is a critical dimension.

3-Home appliance drive mechanisms. Used where a compact shaft has to transfer motion and locate components along one axis, with no play and no binding.

4-Replacement of worn or noisy motor shafts. If the original shaft causes vibration, noise, or early failure, we can reverse engineer it and fix the root cause.
