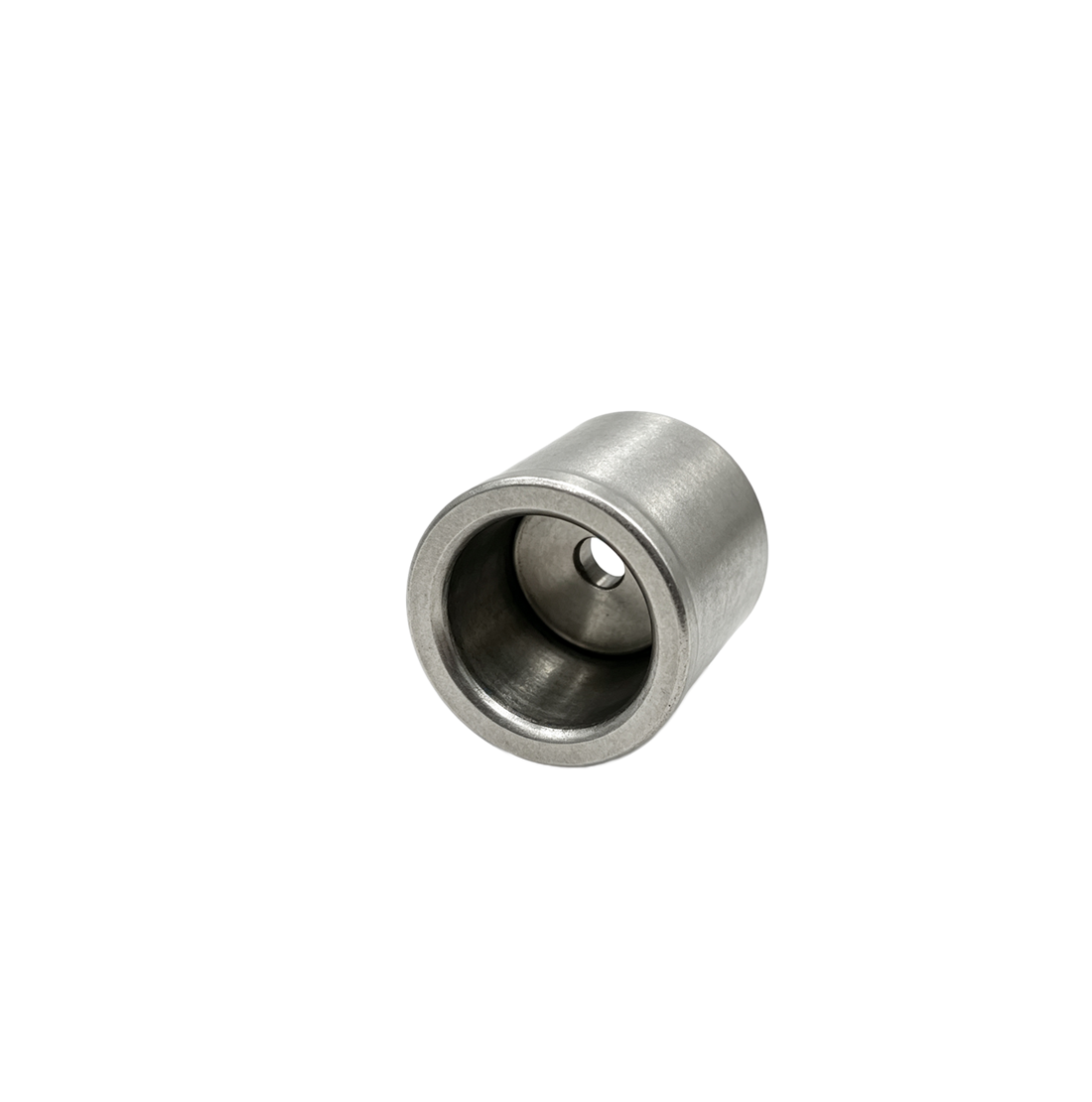

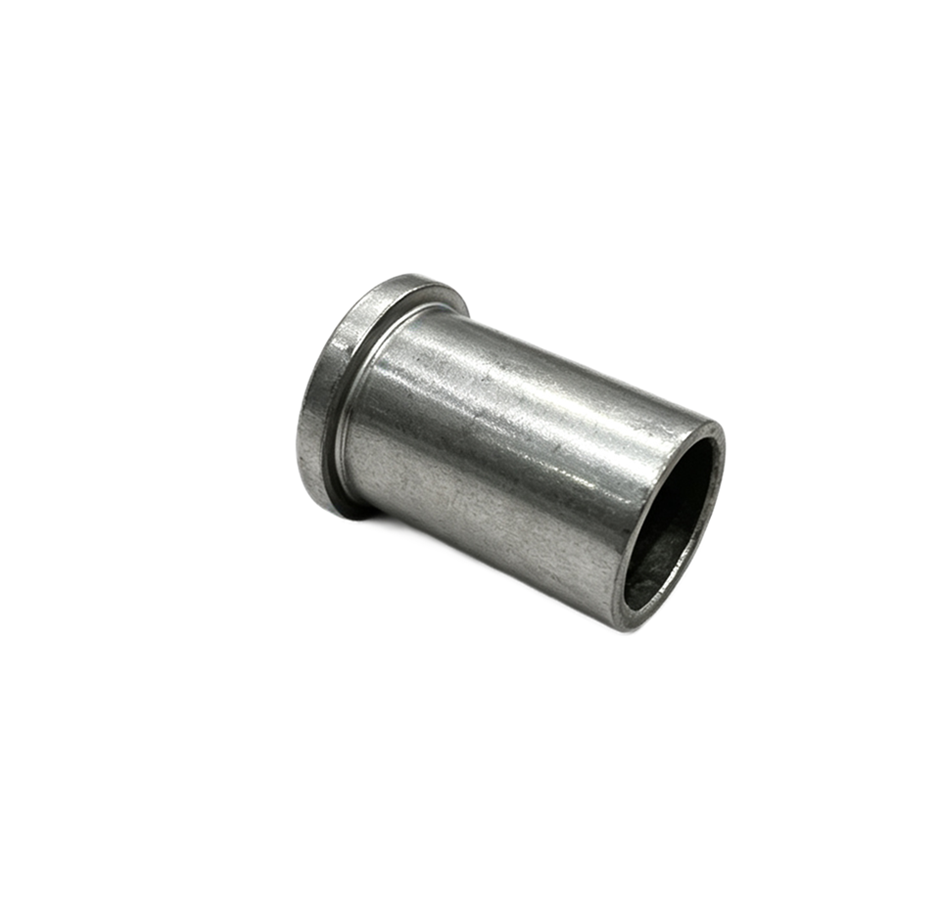

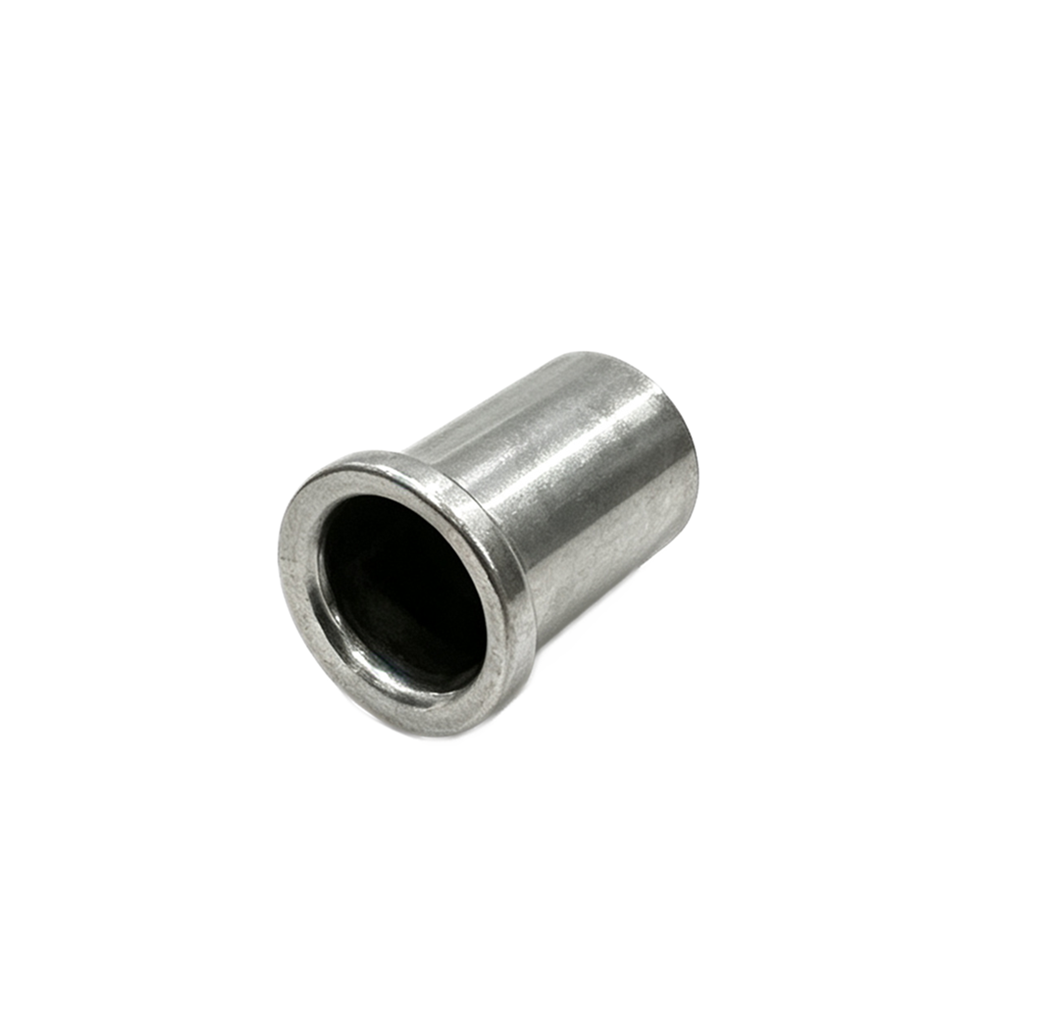

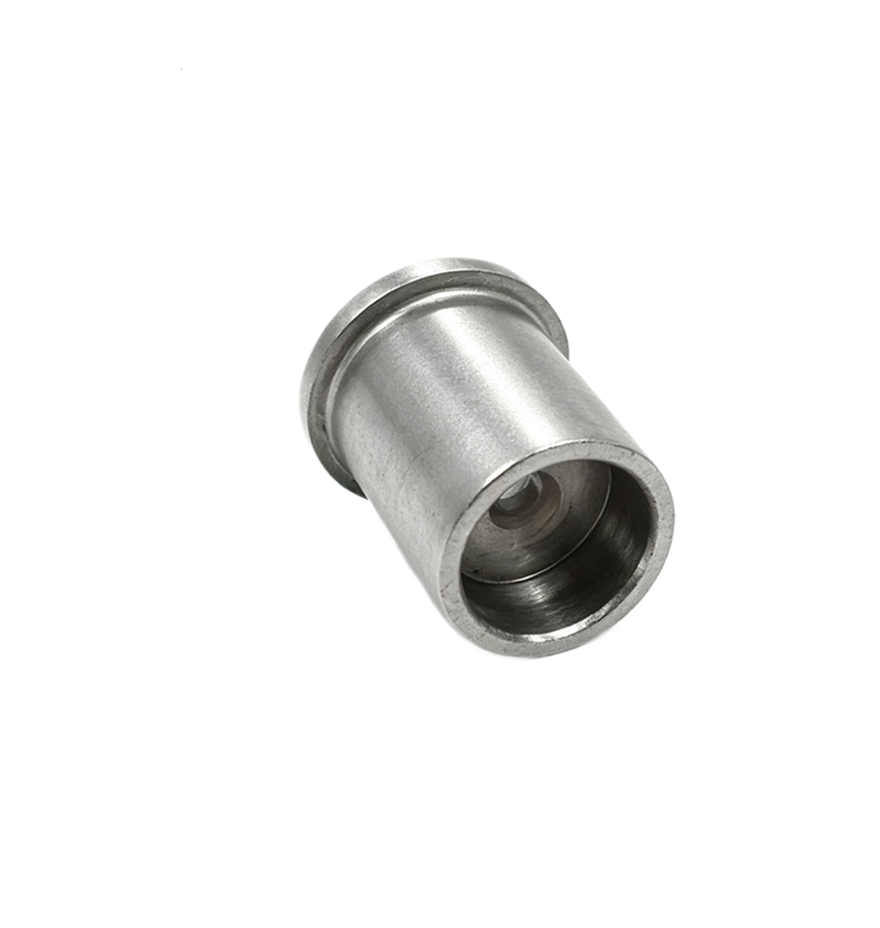

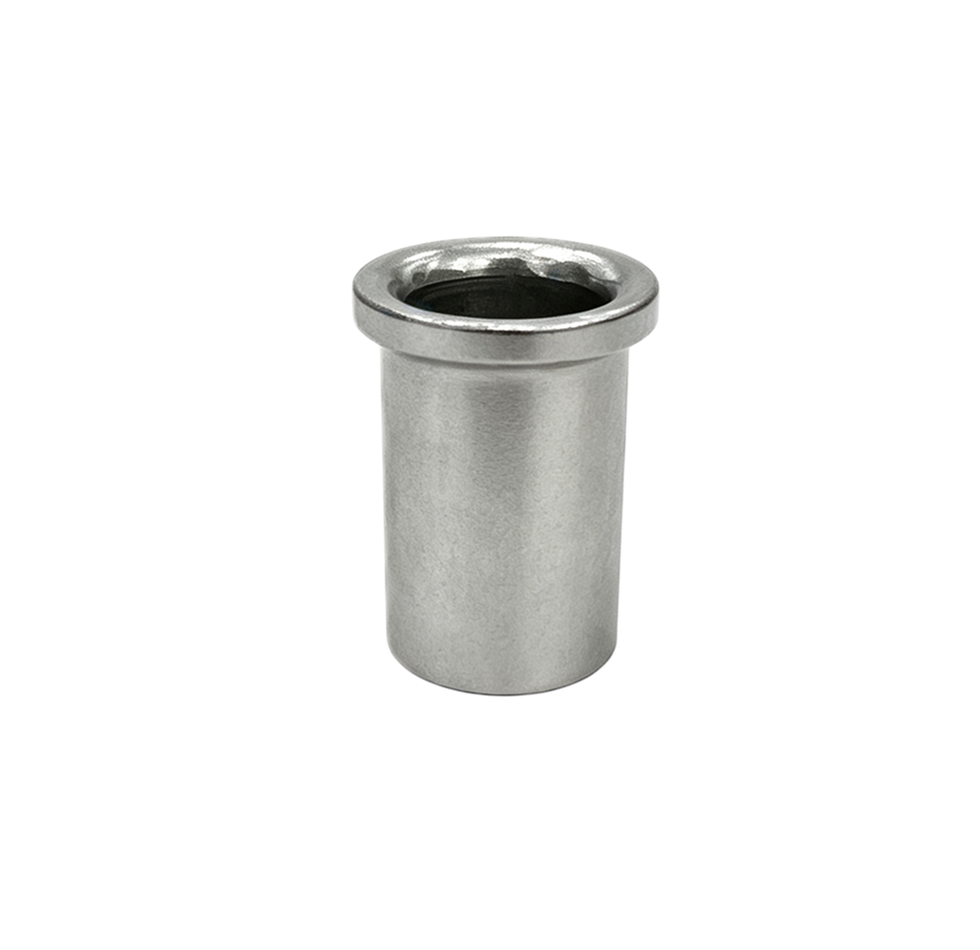

Cold Heading Steel Flange Bearing Manufacturer – OEM 17×10.5×22.8mm Flanged Bushing

Product Content:

Qimao Metal Manufacturer makes this Cold Heading Steel Flange Bearing Manufacturer – OEM 17×10.5×22.8mm Flanged Bushing using a cold heading process, which is a bit different from the usual machining route. The steel grain structure stays continuous through the flange and the barrel, so there are no weak spots or welded seams that might fail later. The 17mm flange serves as a positive stop against the housing face, taking thrust loads while the 10.5mm bore rides on the shaft. Overall length sits at 22.8mm, which gives enough bearing surface for moderate radial loads without taking up too much space inside the assembly. We run these through our in-house quality checks – hardness, bore tolerance, and flange squareness – before they go out. Material is standard carbon steel, but we can switch to alloy grades if your application demands higher strength or impact resistance. Surface finish is typically left as-formed, though grinding or coating options are available if your clearance or corrosion requirements call for something tighter.

Product Specification:

Technical Details:

This Cold Heading Steel Flange Bearing Manufacturer – OEM 17×10.5×22.8mm Flanged Bushing is cold-headed from steel, with the flange and barrel formed in one piece – no welded joints or press-fit collars that could work loose over time. Standard material is carbon steel, though alloy grades can be substituted where higher impact resistance or hardness is required.
Key dimensions are as follows. Flange OD is 17mm, body OD measures 14.2mm, and the bore is 10.5mm. Overall length is 22.8mm. Flange thickness follows your drawing – we do not lock you into a fixed dimension there. Hardness is supplied as-rolled unless heat treatment is specified. For surface finish, we offer as-formed, ground, zinc-plated, phosphated, or oil-coated options. Tolerances are held to standard industrial fit classes, and we can tighten them up if your assembly requires it. Oil grooves or lubrication holes can be added for applications that need periodic greasing. Lead time on standard orders runs about 15 to 20 working days. MOQ is negotiable, depending on material grade and order quantity.

Core Advantages:

• Cold Heading Steel Flange Bearing Manufacturer – OEM 17×10.5×22.8mm Flanged Bushing one-piece cold-headed construction – no separate flange to come loose or shift under vibration

• Denser grain structure compared to machined bar stock, giving better resistance to impact and fatigue

• Steel material holds up better than bronze or brass in dirty or high-moisture environments

• Dimensional consistency from piece to piece, which makes assembly line work smoother

• Can be supplied with oil grooves, lubrication holes, or surface coatings upon request

• Cost-effective at volume – cold heading wastes far less material than turning from bar

Wide Usage:

• The Cold Heading Steel Flange Bearing Manufacturer – OEM 17×10.5×22.8mm Flanged Bushing for agricultural implements – pivot joints on planters, tillers, and disc harrows where dirt and moisture are a constant problem

• Conveyor systems – roller shafts and idler wheels where the flange keeps the bearing from walking out under side loads

• Automotive steering linkages – tie rod ends and drag links that see repetitive shock loads from rough road surfaces

• Hydraulic cylinder mounts – clevis ends where the bearing handles both push forces and misalignment side loading

• Industrial gearboxes – low-speed input or output shafts where rolling element bearings are oversized or overpriced for the actual duty cycle
