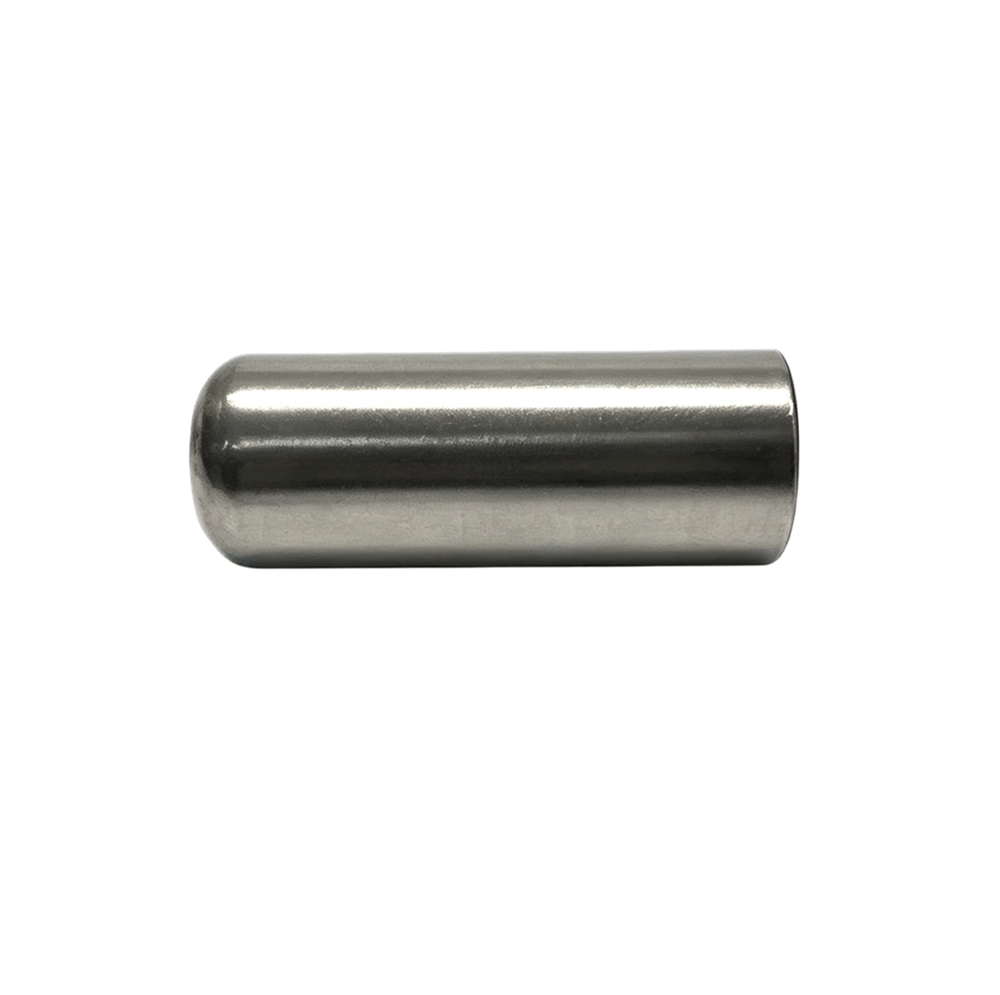

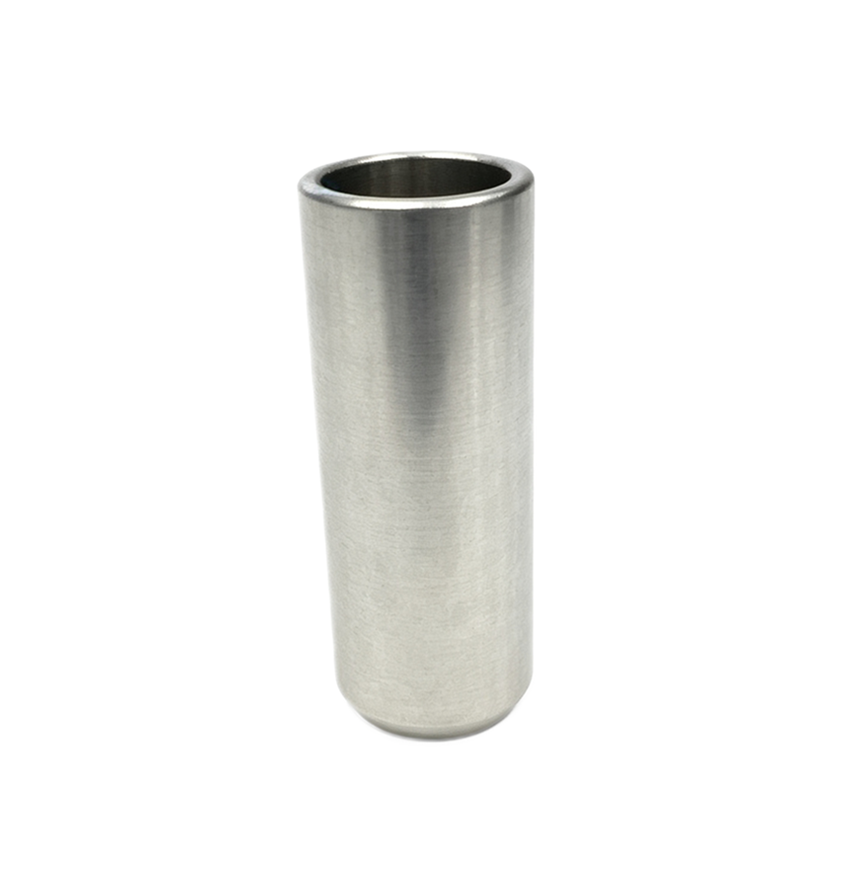

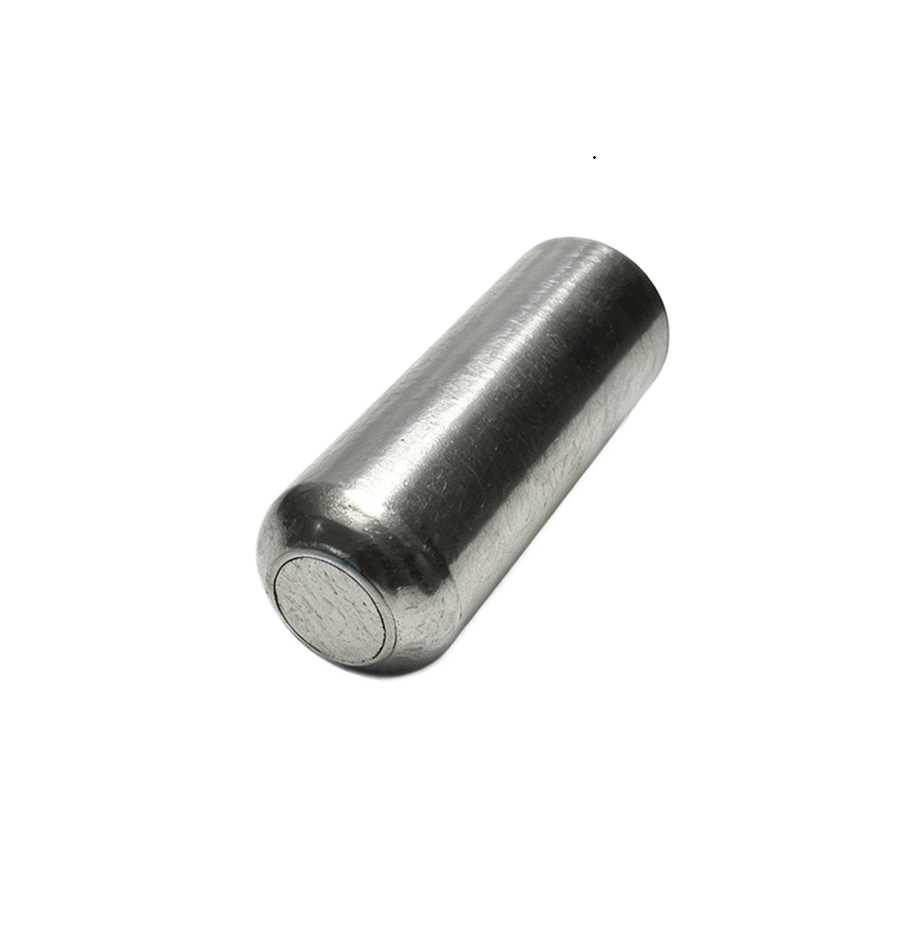

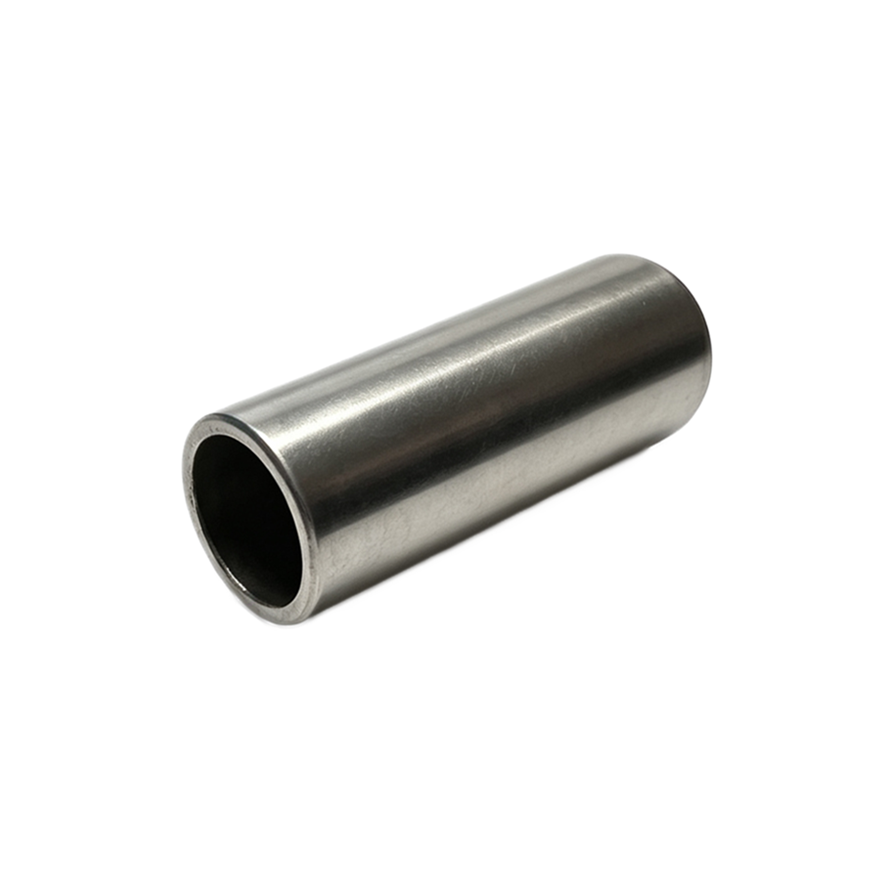

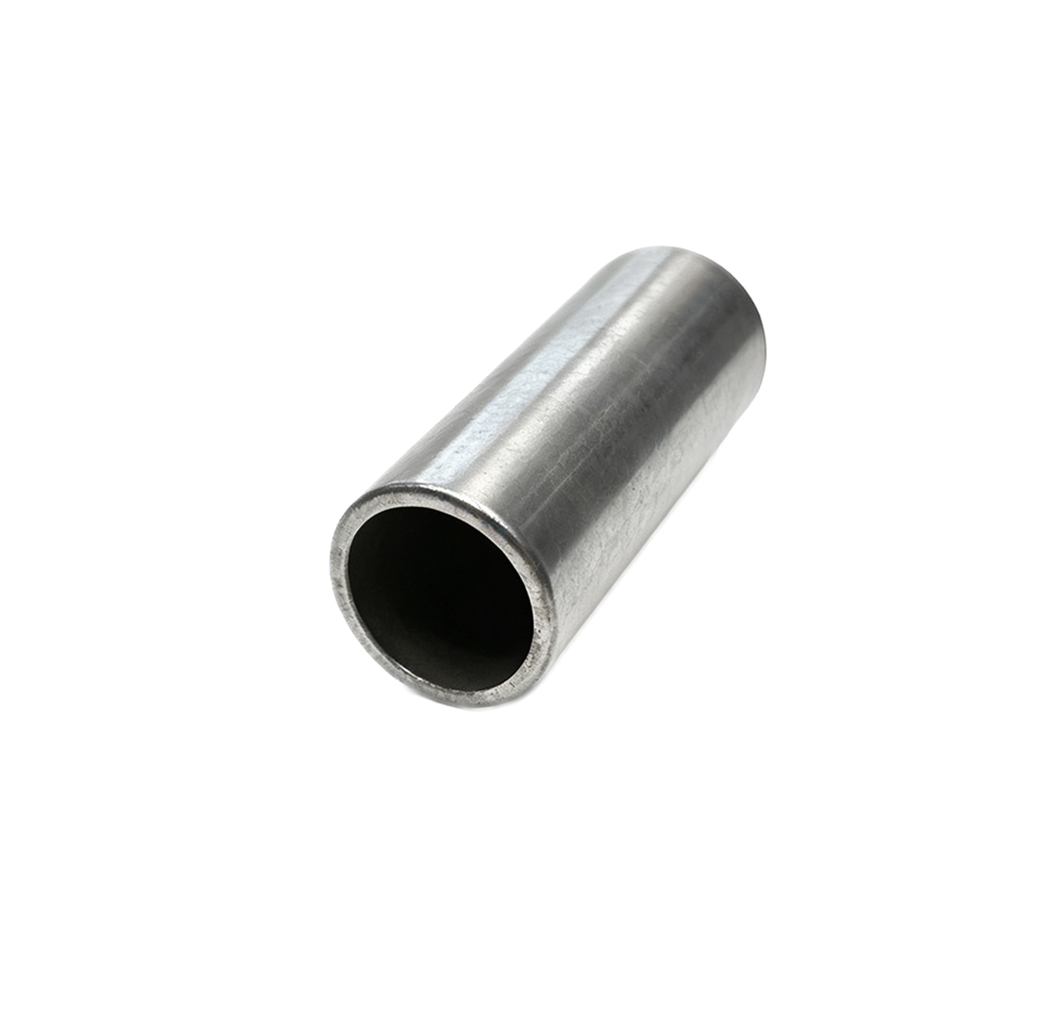

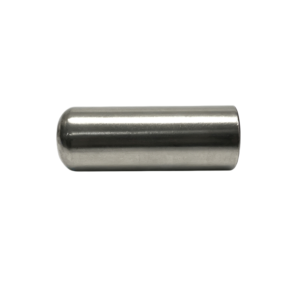

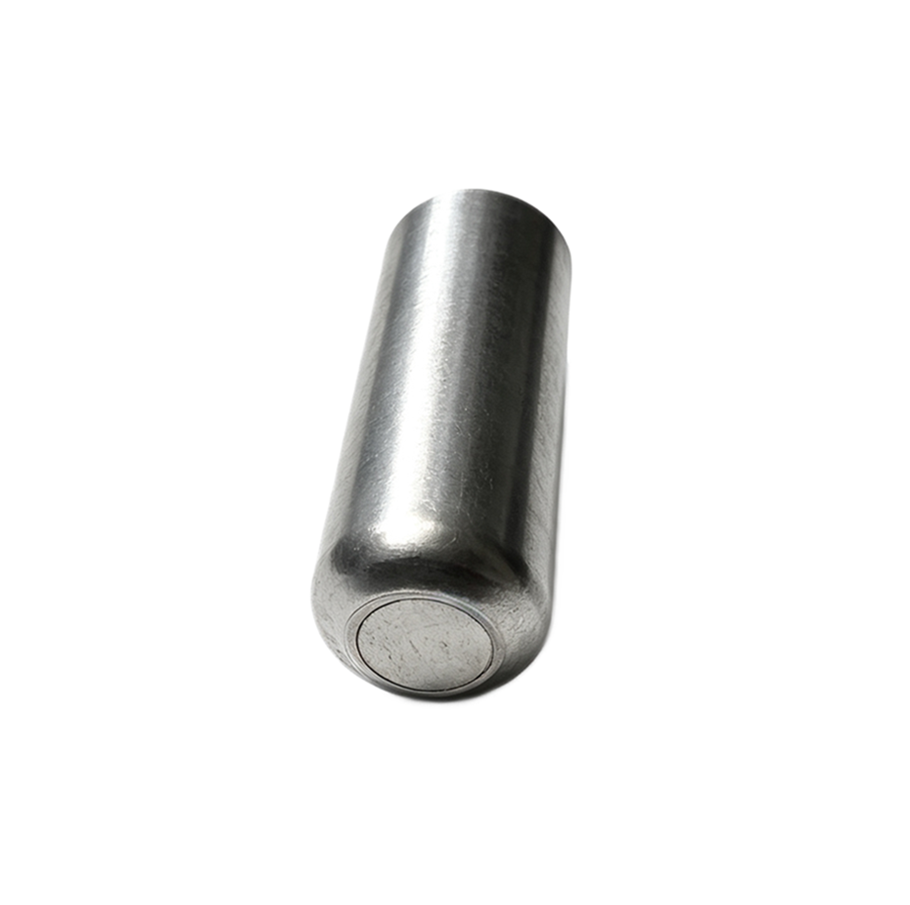

Closed End Sleeve Bushing, One End Capped Hollow Steel Sleeve for Mechanical Pivot

Product Specification:

Product Instruction:

The Closed End Sleeve Bushing, One End Capped Hollow Steel Sleeve for Mechanical Pivot from Qimao Metal Manufacturer, This bushing is machined from solid steel bar, not welded tube – the closed end is integral to the body, which eliminates any seam or joint that could become a failure point under cyclic loading. The internal bore is sized to clear the pivot shaft with a running clearance typically in the range of 0.05mm to 0.15mm, depending on shaft diameter and operating temperature. The external diameter is dimensioned for an interference fit into the housing, usually between 0.02mm and 0.06mm press per 25mm of bore diameter. The closed end provides both a sealing function and a positive depth stop during installation. Material selection is based on the application – we commonly use medium-carbon steels like 1045 or 4140, with heat treatment available where surface hardness is required.

Product Details:

The closed end is formed during machining from a single piece of bar stock, which means no welded cap and no risk of separation under load. The Closed End Sleeve Bushing, One End Capped Hollow Steel Sleeve for Mechanical Pivot tolerances is held to ±0.01mm on standard tooling, this ensures assemble tight and suitable, the batch and the running clearance remains within specification. Wall thickness variation is limited to 0.05mm maximum, measured at any point along the sleeve length. The closed face is machined square to the bore axis within 0.02mm, so when the bushing bottoms out in the housing, it sits flush and does not tilt. Surface finish is specified at 0.8Ra on both the bore and the OD – this level supports proper lubrication retention while still allowing for a secure press-fit without galling the housing bore during installation.

Our Advantage:

Our shop floor runs two shifts, five days a week. We machine these Closed End Sleeve Bushing, One End Capped Hollow Steel Sleeve for Mechanical Pivot on cold heading machine – the closed end is turned from solid bar in one setup, which keeps the bore and OD concentric within 0.02mm. Heat treatment is done in a sealed quench furnace by our long term cooperation partner – we know exactly how it behaves because we maintain it. We keep hardness records per batch, not just certificates. When a customer calls about a fit issue, we pull the batch log and check the actual as-machined dimensions against the print, not against a standard spec. We do not stockpile finished parts – we make them per order so we can adjust chemistry or hardness if your application changes. That flexibility comes from running a smaller operation, and we use it as our advantage.

Core Feature:

• The Closed End Sleeve Bushing, One End Capped Hollow Steel Sleeve for Mechanical Pivot,side of closed end is machined from the same piece of bar as the sleeve – no weld seam, so no crack point under fatigue loading.

• One-end-closed design retains grease longer than open sleeves with separate caps – one less gap for lubricant to escape.

• Wall thickness held within 0.05mm around the full circumference – we check this with a micrometer at three positions per part.

• Uneven walls create a stiff side and a weak side – the weak side wears first. We avoid this by using true-running bar stock and not rushing the roughing pass.

• A slight chamfer on the open end – added because we have seen shafts get scratched during insertion, and this stops that from happening.

Wide Usage:

• Excavator boom pins and loader bucket linkages – closed end of Closed End Sleeve Bushing, One End Capped Hollow Steel Sleeve for Mechanical Pivot faces outward, away from the grease fitting, keeping water and grit out from that side.

• Agricultural tractor hitch connections – pivot points that see both rotation and side loading, where grease retention reduces daily maintenance.

• Crane boom foot pins – bushing sits vertically in some installations, closed end at the bottom prevents grease from draining out.

• Mining equipment suspension arms – wall thickness matters more than hardness here, because impact loads tend to crack thin sections.

• Continuous oscillation applications – we recommend the hardened version in these conditions; we have test data showing it holds up better than standard temper.
