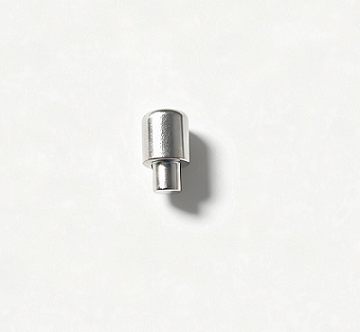

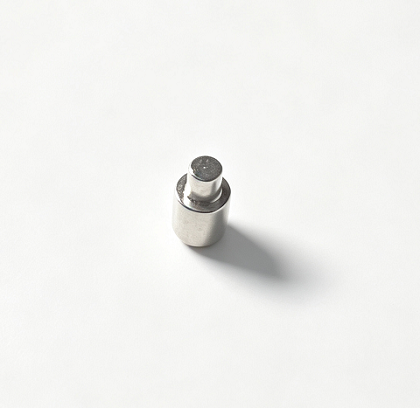

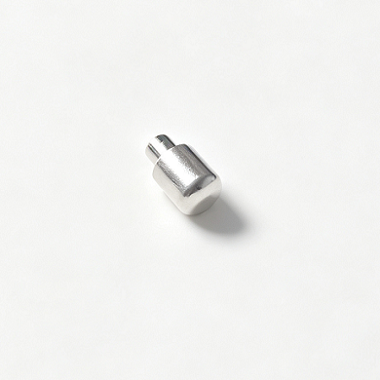

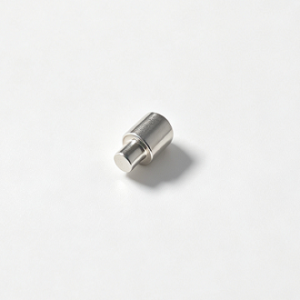

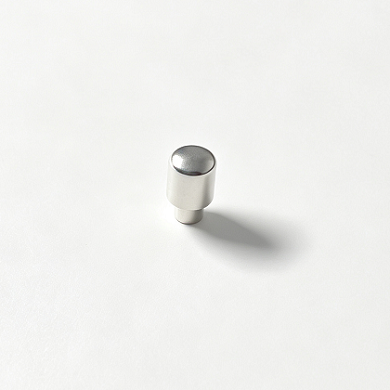

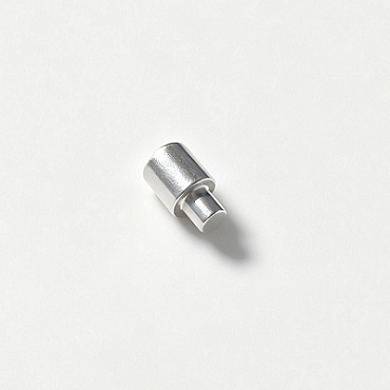

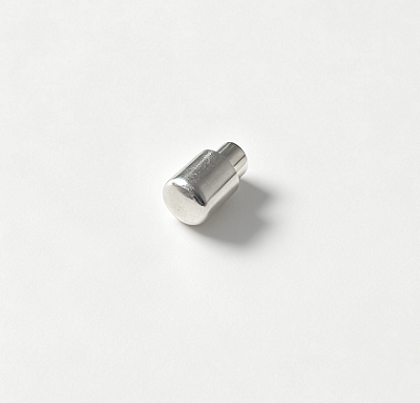

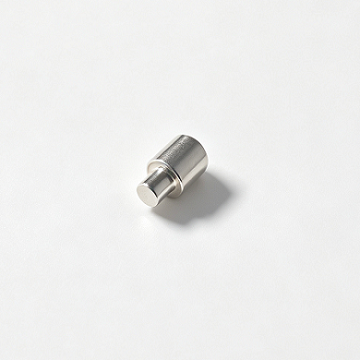

Automotive Steel Horn T Shape Armature with Zinc Plated

Product Description:

Qimao Metal Manufacturer Automotive Steel Horn T Shape Armature with Zinc Plated sits right in the middle of the solenoid assembly, and when current hits the coil, it shoots forward to strike the diaphragm. That impact is what gives you the horn sound. We use cold-rolled steel for this piece because it magnetizes quickly and releases just as fast—both matter when the horn cycles on and off rapidly. The zinc layer we apply isn’t there just for looks; it stops corrosion from taking hold in damp environments. And it reduces friction against the bore wall, so the armature slides freely every time. Over the years, we’ve dialed in the manufacturing process to hold tolerances that keep stroke length consistent. Bottom line: you get reliable operation, cycle after cycle.

Specification:

Products Details:

The material of Automotive Steel Horn T Shape Armature with Zinc Plated is low-carbon steel. We chose it specifically because it offers a good combination of magnetic response and mechanical durability—things this part needs to handle day in and day out. Plating is done through electroplating, and we keep the zinc layer thin enough that clearances stay intact but thick enough to pass 72-hour salt spray tests. Critical sliding surfaces are held to within ±0.02mm, so the armature moves smoothly without binding. Each piece weighs in at 1.06 grams. It’ll handle temperatures from -30°C up to 120°C without any trouble. After machining, we deburr every single part, because any sharp edge left behind could snag the coil windings during assembly and cause failures down the line.

Product Feature:

• We put a fine finish on the sliding surfaces during production—less friction means the Automotive Steel Horn T Shape Armature with Zinc Plated responds quicker when the solenoid fires.

• That zinc coating holds up well in salt spray, so it’s a solid choice for coastal areas or places where they throw salt on the roads in winter.

• Dimensions stay consistent across runs. Order another batch six months from now and these will fit the same way the first ones did.

• The part is light, so there’s hardly any lag when the coil energizes—it moves when it’s supposed to.

• We deburr every piece after machining, so no sharp edges are left to nick the coil insulation during installation.

• Magnetic properties hold steady whether it’s freezing outside or hot under the hood.

Product Application:

• Factory assembly lines for passenger cars, plus the aftermarket shops that keep those Automotive Steel Horn T Shape Armature with Zinc Plated models on the road years later when the original horns start to fade.

• Light trucks and delivery vans. These things get used hard, and if the horn quits, it’s not just an inconvenience—it can actually be a compliance issue during inspections.

• Motorcycles, where space is tight. The compact solenoid designs in bikes need an armature that fits without taking up unnecessary room, and this one does.

• Industrial panels and alarm systems that run on DC power—typically 12V or 24V. They use the same basic electromagnetic principle, just in a different housing.

• Repair garages that do a steady volume of horn work. They like having a replacement that drops in without modifications, because time is money and nobody wants to file down a part to make it fit.

• Restoration projects on older vehicles. Try finding an original armature for a 70s-era model at a dealership—good luck. This one fills that gap nicely.
